NSN:
6685-01-191-5025
6685011915025
Description:

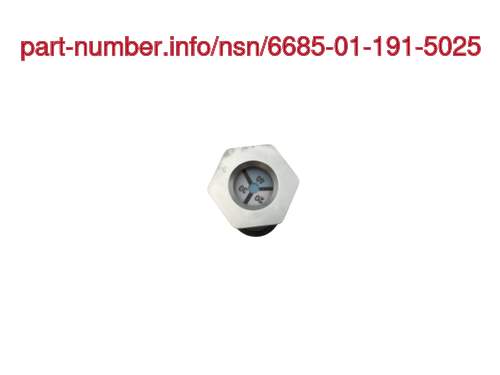

INDICATOR,HUMIDITY,PLUG
NSN Assigned:
09-OCT-84
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy, Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

6685-01-191-5025 Specification Set by the OEM (see RNCC code 3)

Thread Direction AAJF:

LEFT-Hand single end

Overall Height ABKW:

4.000in.

Overall Diameter ADAV:

1.375in. ⁓1-3/8"

End Connection Type AWZY:

flanged, recessed single end

Thread Quantity Per Inch CMLP:

14 single end

Nominal Thread Size CQJX:

0.750in. single end ⁓3/4"

Desiccant Spot Humidity Percentage CTGW:

20.0 and 30.0 and 40.0

Special Features FEAT:

w/porous desiccant

Material MATT:

aluminum alloy 2017 or aluminum alloy 2024

Material Document And Classification MDCL:

MIL-I-26860 type 2 mil spec 1st material response

Style Designator STYL:

plug

Thread Series Designator THSD:

npt single end

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
3431
Cage Code:
00334
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
5479167
Cage Code:
53711
RNCC:
7
RNVC:
2
DAC:
1
RNAAC:
CX
Status:
A
MSDS:
SADC:
Part Number:
SAP 3433
Cage Code:
00334
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
2156-234P-DA2
Cage Code:
00334
RNCC:
5
RNVC:
9
DAC:
E
RNAAC:
CX
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
08357
FIIG:
A43400
Concept No.:
App. Key:
C
Cond. Code:
1
Status:
A
STYLE DESIGNATOR PLUG style nsn 6685-01-191-5025
STYLE DESIGNATOR PLUG style nsn 6685-01-191-5025
STYLE DESIGNATOR PLUG style nsn 6685-01-191-5025

Definition Definition of approved item name (AIN): "INDICATOR,HUMIDITY,PLUG"

An item which uses the changing color of a desiccant in the presence of moisture to indicate humidity. The desiccant is in a plug through which the color may be observed and compared with a chart.
