NSN 5990-00-636-4147 NIIN 006364147 — Receiver Synchro

Home » FSG Index » FSG 59 - Electrical And Electronic Equipment Components » FSC 5990 - Synchros And Resolvers » NSN 5990-00-636-4147

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		5990-00-636-4147
5990006364147

Description:

SYNCHRO,RECEIVER

NSN Assigned:

01-JAN-63

DEMIL:

DEMIL

Shelf Life:

N/A

UOM:

Using Services:

5990-00-636-4147 Images

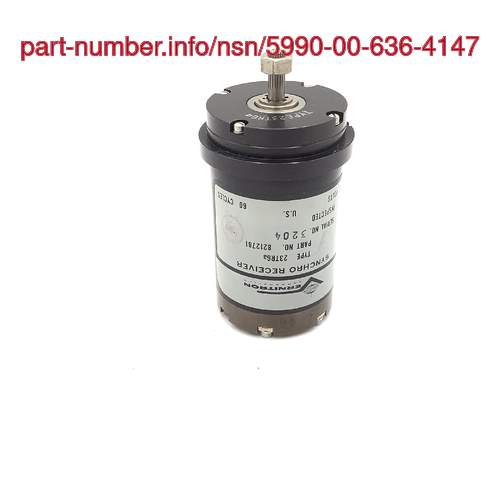

(for reference only) NSN 5990-00-636-4147

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

5990-00-636-4147 Specification Set by the OEM (see RNCC code 3)

Flange Diameter ABKK:

2.2500in.

Shaft Diameter ABWV:

0.2405in. single shaft

Shaft Length ABXF:

0.7190in. single shaft

Rotor Input Voltage Rating In Volts AJSR:

115.0

Frequency In Hertz AJSS:

60.0

Rotor Input Current Rating AJST:

210.0 milliamperes

Rotor Input Electrical Power Rating AJSV:

5.0 watts

Spline Tooth Quantity AJVM:

22 single shaft

Torque Gradient Per Angular Deg AJVV:

0.120 INCH-Ounces

Mounting Surface To Terminal End Distance AJWX:

3.5800in.

Spline Tooth Diametral Pitch AJXA:

96 single shaft

Transformation Ratio CSJY:

0.783 rotor to stator

Terminal Type And Quantity TTQY:

5 screw
