5990-00-018-9723 Specification Set by the OEM (see RNCC code 3)
steel, corrosion resisting
standard round c
1.3115in. and 1.3120in.
0.8745in. and 0.8750in.
3.0630in. ⁓3-5/64"
1.4320in. and 1.4370in.
0.0930in.
1.3120in.
0.0780in.
0.1870in. single shaft and 0.1872in. single shaft
0.5400in. single shaft
moderately rugged
20.0 deg celsius
15
115.0
60.0
22.0 milliamperes
360.0 milliwatts
5335.00 and 6265.00
80.00 and 83.00
675.00 and 825.00
11.00 and 16.00
7.000 input to output
45.00 output
90.00
-6.0 to 6.0
21 single shaft
0.050 INCH-Ounces
4
0.0400in.
0.1320in.
2.5230in.
120 single shaft
unf single shaft
RIGHT-Hand single shaft
2a single shaft
rear
0.1850in. single shaft
spline w/threads single shaft
0.1250in.
0.783 rotor to stator
1.1000in.
0.190in. single shaft
81349-MIL-S-20708 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
5 screw
81349-MIL-S-20708/20 government specification
End Item End items to which 5990-00-018-9723 is a component of
- BRN RADIO TERMINAL SET, AN/SRQ-4
- CQN TARGET ACQUISITION SYSTEM, MK-23 (MODS 1-8)
- EZN TICONDEROGA CLASS CG (47)
- FBN SPRUANCE CLASS DD (963)
- HZN FORRESTAL CLASS CV
- JAN NIMITZ CLASS CVN
- JDN ARLEIGH BURKE CLASS DDG
- JFN OLIVER PERRY CLASS FFG
- JGN SEAWOLF CLASS SSN
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)

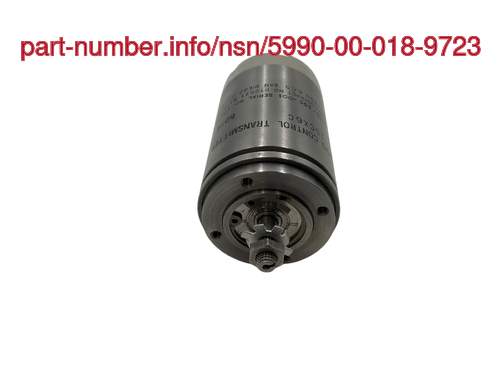

Definition Definition of approved item name (AIN): "SYNCHRO,TRANSMITTER"
A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Items or packages that require packing for acceptance by the carrier shall be packed in exterior type shipping containers in a manner that will ensure safe transportation at the lowest rate to the point of delivery and shall meet, as a minimum, the requirements of the following rules and regulations, as applicable to the mode(s) of transportation to be utilized: (a) postal regulations, (b) department of transportation regulations, (c) civil air regulations, (d) uniform freight classification rules, (e) national motor freight classification rules, (f) american truckers' association rules, (g) other applicable carriers' rules, (h) military air regulations for dangerous materials. consolidation of shipments. all exterior packs of 1.5 cubic feet or less having no single dimension (length, width, height) exceeding 40 inches (and when the total number of such containers in any individual shipment exceeds 25), shall be consolidated, using flat pallets, box pallets, or containers as the consolidating media. dangerous goods shall be prepared for shipment according to applicable department of transportation (dot) regulations and international regulations in effect at time of shipment. shipment by parcel post must comply with postal regulations.
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
No special marking.
Packaging Codes
OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.
SPI No.: Special packaging instructions number.
LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.
SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.
5990-00-018-9723 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Item does not contain precious metal.
Represents items with no adp components
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
