NSN 5985-01-294-6009 NIIN 012946009 — Waveguide Adapter

Home » FSG Index » FSG 59 - Electrical And Electronic Equipment Components » FSC 5985 - Waveguides And Related Equipment Antennas » NSN 5985-01-294-6009
NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5985-01-294-6009
5985012946009
Description:
ADAPTER,WAVEGUIDE
NSN Assigned:
18-FEB-89
DEMIL:
 DEMIL
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5985-01-294-6009 Specification Set by the OEM (see RNCC code 3)

Cross-sectional Shape Style AAGR:

internal, rectangular double ridged external, elliptical

Tubing Wall Construction Style AHRV:

seamless single tubing segment

Flange Quantity AHSF:

1

Flange Outside Width AHSZ:

1.755in. single flange

Flange Outside Height AHTA:

0.755in. single flange

Adapter Height BBPQ:

0.755in.

Waveguide Outside Width CQHN:

1.755in.

Waveguide Outside Height CSFC:

0.755in.

Flange Connecting Facility And Quantity CSQT:

2 unthreaded stud single flange second connection facility

Flange Style CTCJ:

contact, double ridge type single flange

Adapter Overall Width CXBH:

1.755in.

Material MATT:

aluminum alloy 6061 single tubing segment

Style Designator STYL:

waveguide to coaxial

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
22750-141
Cage Code:
63661
RNCC:
3
RNVC:
2
DAC:
2
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00186
FIIG:
A073A0
Concept No.:
App. Key:
D
Cond. Code:
1
Status:
A

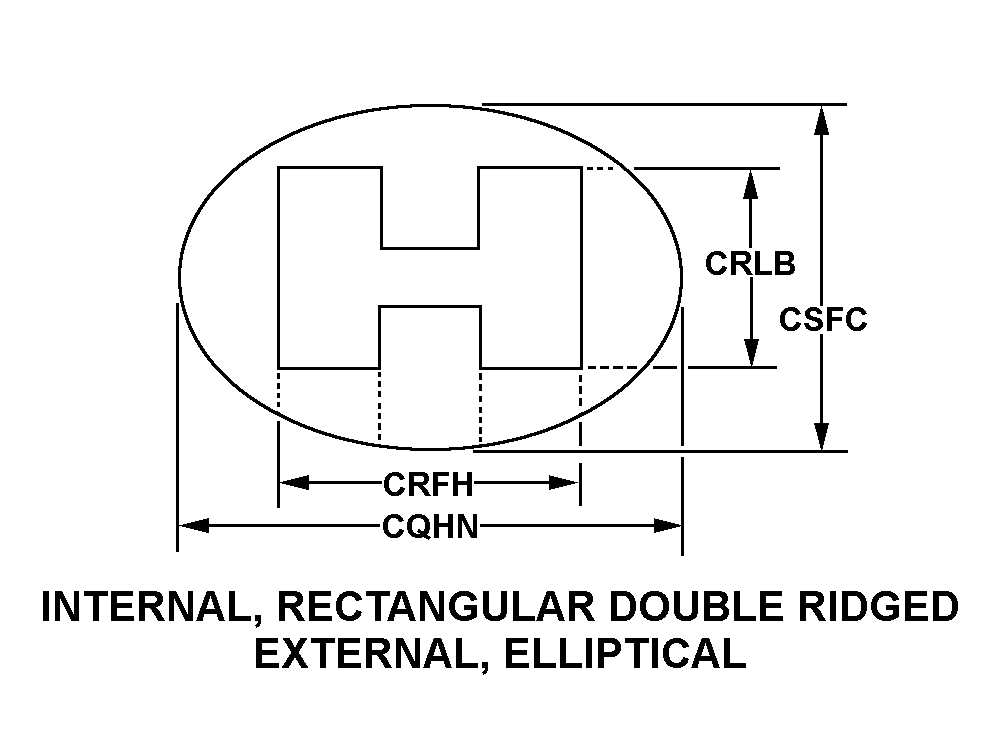

CROSS-SECTIONAL SHAPE STYLE INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, ELLIPTICAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-01-294-6009

Definition Definition of approved item name (AIN): "ADAPTER,WAVEGUIDE"

An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.

5985-01-294-6009 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
P
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) P

Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
