NSN 5985-00-433-9024 NIIN 004339024 — Waveguide Adapter

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5985-00-433-9024
5985004339024
Description:
ADAPTER,WAVEGUIDE
NSN Assigned:
17-MAY-74
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5985-00-433-9024 Specification Set by the OEM (see RNCC code 3)

Cross-sectional Shape Style AAGR:

internal, rectangular double ridged external, round

Tubing Wall Construction Style AHRV:

seamless single tubing segment

Flange Quantity AHSF:

1

Coaxial Connector Series Designation AHUC:

n

Connector End Design AHUD:

female

Adapter Length BBPN:

2.125in.

Material MATT:

aluminum alloy 6061 all tubing segment and flange

Surface Treatment SFTT:

chromate single tubing segment and flange outside surfaces and paint single tubing segment and flange outside surfaces

Style Designator STYL:

waveguide to coaxial

Fsc Application Data ZZZV:

antennas, waveguides, and related equipment

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
404517-1
Cage Code:
00752
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
TX
Status:
A
MSDS:
SADC:
Part Number:
40-1100
Cage Code:
06351
RNCC:
3
RNVC:
2
DAC:
A
RNAAC:
TX
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00186
FIIG:
A073A0
Concept No.:
App. Key:
D
Cond. Code:
1
Status:
A

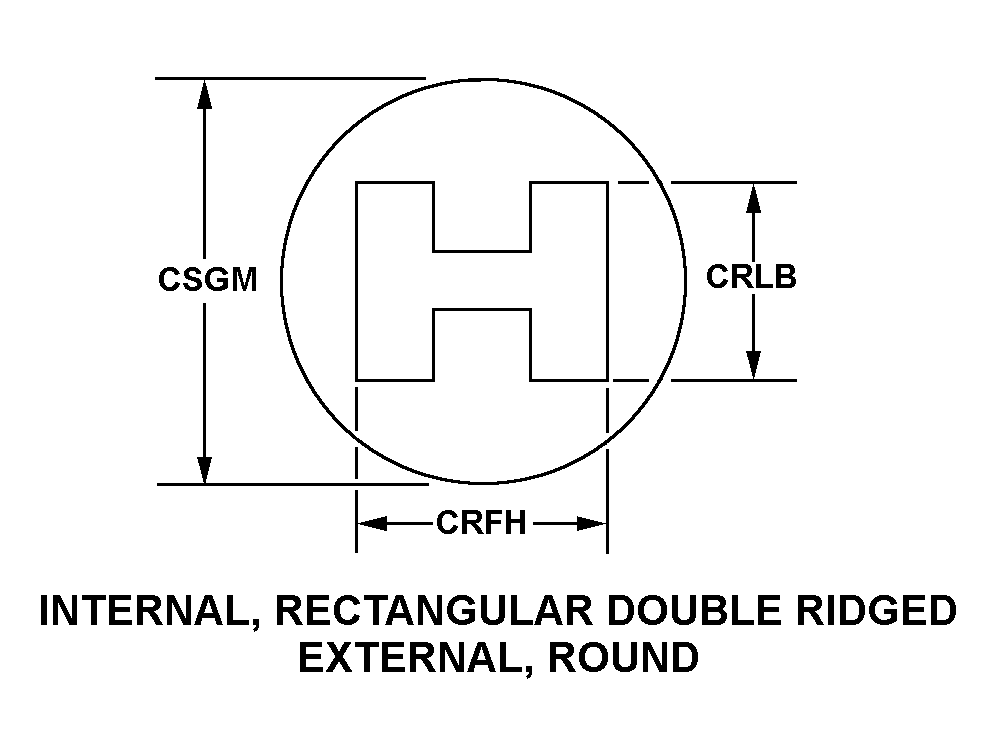

CROSS-SECTIONAL SHAPE STYLE INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, ROUND style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024
STYLE DESIGNATOR WAVEGUIDE TO COAXIAL style nsn 5985-00-433-9024

Definition Definition of approved item name (AIN): "ADAPTER,WAVEGUIDE"

An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
