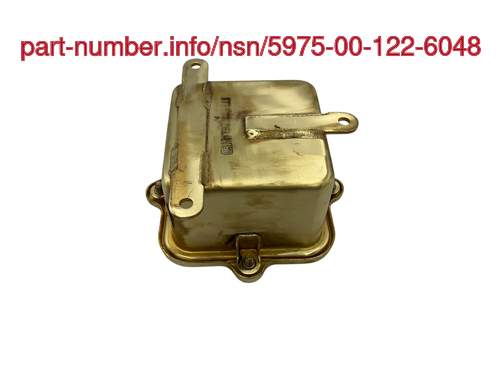

NSN 5975-00-122-6048 NIIN 001226048 — Junction Box

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5975-00-122-6048
5975001226048
Description:
JUNCTION BOX
NSN Assigned:
06-NOV-68
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy, Coast Guard

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5975-00-122-6048 Specification Set by the OEM (see RNCC code 3)

Overall Length ABHP:

6.125in. ⁓6-1/8"

Overall Height ABKW:

3.066in.

Overall Width ABMK:

6.125in.

First Center To Center Distance Between Mounting Holes ABUQ:

3.875in.

Second Center To Center Distance Between Mounting Holes ABUR:

5.000in.

Inside Width ADJT:

4.000in.

Inside Length ADJU:

4.000in.

Environmental Protection ADZC:

shock proof and submersible

Cover Mounting Hole Quantity AELW:

4

Inside Depth AFEF:

2.812in.

Mounting Feet Thickness AFEK:

0.125in.

Cover Type AFER:

blank

Cover Attachment Method AFFG:

bolts

Material MATT:

copper alloy

Style Designator STYL:

Nondefinitive Spec/std Data ZZZT:

-24142/1-001 part

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
M24142-1-001
Cage Code:
81349
RNCC:
2
RNVC:
2
DAC:
4
RNAAC:
HD
Status:
A
MSDS:
SADC:
Part Number:
MIL-E-24142/1
Cage Code:
81349
RNCC:
4
RNVC:
1
DAC:
4
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
06219
FIIG:
A061A0
Concept No.:
App. Key:
C
Cond. Code:
1
Status:
A

Definition Definition of approved item name (AIN): "JUNCTION BOX"

An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes conduit outlet; and chamber, cable terminal. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see switch box; fuze box; jack box; terminal box; circuit breaker box; and distribution box. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see interconnecting box. See also interconnecting cabinet.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
2.5000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.
