5970009559976

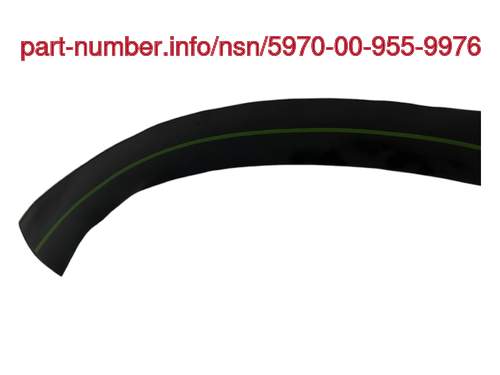

5970-00-955-9976 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5970-00-955-9976 Specification Set by the OEM (see RNCC code 3)
300.0
1.000in.
432.0in.
-130.0 deg fahrenheit and 500.0 deg fahrenheit
1 single
0.0400in.
green guide line
black
rubber
MIL-I-46852, type 2 mil spec single material response
ii type
End Item End items to which 5970-00-955-9976 is a component of
- A1N CLOSE IN WEAPON SYSTEM (CIWS-PHALANX)
- AQF DEFENSE COMMUNICATIONS RADIO (9 SYSTEMS)
- ATF AIRCRAFT, SOF ( AC-130H, MC-130H, EC-130E, HC-130)
- AXN FIRE CONTROL SYSTEM, MK 92 (FCS)
- AYF ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135, B-52H)
- AZN FIRE CONTROL SYSTEM, MISSILE MK 74 (FCS)
- BEF ENGINE, AIRCRAFT, TF34-GE-100 (A-10)
- BEN MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84)
- BHF ENGINE, AIRCRAFT, T56-A-7/15 (C-130B/E/H/N/P)
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "TAPE,INSULATION,ELECTRICAL"
A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. The item tends to resist any physical change, in contrast to an insulating compound in tape form which will fuse under a specified heat or pressure. It may or may not have adhesive backing. Excludes items not having definite rated electrical characteristics, such as tape, adhesive, rubber; tape, pressure sensitive adhesive; tape, semi-conducting, electrical; and tape, shielding, electrical. See also insulation cloth, electrical and insulating compound, electrical.
Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
All packaging data is mandatory for compliance and no substitutions are permitted. fast packs should be included in this category.
Type ii, shelf life.
Packaging Codes
OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.
SPI No.: Special packaging instructions number.
LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.
SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.
5970-00-955-9976 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates information is in the hazardous materials information resource system (hmirs).
Item does not contain precious metal.
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
Material Management Material categorization and source of supply
Defense logistics agency, enterprise business systems
Electronic components (engineering support at the 88th ose/oss)
Material Codes
SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.
SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.
MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.
MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category
IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
