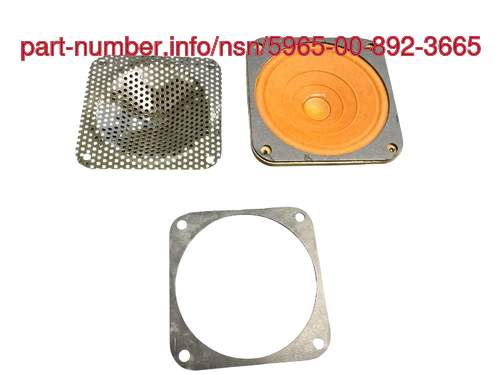

5965-00-892-3665 Specification Set by the OEM (see RNCC code 3)
2
tab, solder lug
2.375in.
4.000in. ⁓4-1/64"
3.312in.
3.312in.
4.000in.
0.190in.
+300.0/+7000.0
2.00 watts normal and 4.00 watts peak
4.0in.
0.575in.
4
cone
10-24 unc
outdoor
nonportable
7.0 voice coil and 9.0 voice coil
threaded hole
square
81349-MIL-L-12606 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
End Item End items to which 5965-00-892-3665 is a component of
- BKN NON-TRIDENT EXTERIOR COMMUNICATION
- BQM RADAR SET, LIGHTWEIGHT 3D (AN/TPS-59)
- BVN DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP)
- CWN TELETYPE, MODEL 28
- EXN LOS ANGELES CLASS SSN (688)
- EYN STURGEON CLASS SSN (637)
- EZN TICONDEROGA CLASS CG (47)
- FBN SPRUANCE CLASS DD (963)
- FGN CVN 68 CLASS REACTOR FILL AUXILIARY SYSTEM
- FJN INTEGRATED SHIPS CONTROL (SMART SHIP) - CG-47
- ATQ AN/GLQ 3 COUNTERMEASURE SET
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "LOUDSPEAKER,PERMANENT MAGNET"
A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
No special marking.
Packaging Codes
OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.
SPI No.: Special packaging instructions number.
LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.
SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.
5965-00-892-3665 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates information is in the hazardous materials information resource system (hmirs).
Precious metal content is unknown
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
