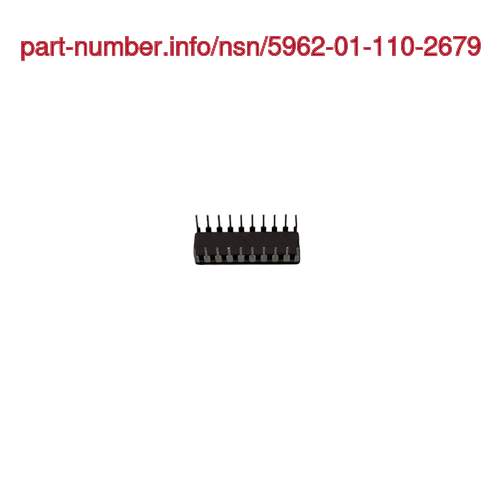

NSN 5962-01-110-2679 NIIN 011102679 — Digital Microcircuit

Home » FSG Index » FSG 59 - Electrical And Electronic Equipment Components » FSC 5962 - Electronic Microcircuits » NSN 5962-01-110-2679

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		5962-01-110-2679
5962011102679

Description:

MICROCIRCUIT,DIGITAL

NSN Assigned:

28-MAR-81

DEMIL:

DEMIL

Shelf Life:

N/A

UOM:

No qup EA

Using Services:

Navy

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

5962-01-110-2679 Specification Set by the OEM (see RNCC code 3)

Body Length ADAQ:

1.060in.

Body Width ADAT:

0.220in. and 0.310in.

Body Height ADAU:

0.140in. and 0.185in.

Maximum Power Dissipation Rating AEHX:

522.5 milliwatts

Operating Temp Range AFGA:

-55.0/+125.0 deg celsius

Storage Temp Range AFJQ:

-65.0/+150.0 deg celsius

Features Provided CBBL:

hermetically sealed and low power and monolithic and 3-state output and w/enable

Inclosure Material CQSJ:

ceramic

Inclosure Configuration CQSZ:

DUAL-IN-Line

Output Logic Form CQWX:

TRANSISTOR-Transistor logic

Input Circuit Pattern CQZP:

2 input

Design Function And Quantity CSSL:

8 transceiver

Case Outline Source And Designator CTFT:

D-8 MIL-M-38510

Terminal Surface Treatment CWSG:

solder

Voltage Rating And Type Per Characteristic CZEN:

-0.5 volts power source and 7.0 volts power source

Time Rating Per Chacteristic CZEQ:

22.00 nanoseconds propagation delay time, low to high level output and 22.00 nanoseconds propagation delay time, high to low level output

Special Features FEAT:

nuclear hardness critical items

Test Data Document TEST:

81349-MIL-M-38510 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .

Terminal Type And Quantity TTQY:

20 printed circuit

Specification/standard Data ZZZK:

81349-MIL-M-38510/328/usaf/ government specification

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number

Cage

RNCC

RNVC

DAC

RNAAC

Status

MSDS

SADC

Part Number:

0N270550

Cage Code:

98230

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1820-2075

Cage Code:

28480

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

ES5902-74LS245

Cage Code:

20418

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

35674245-1001

Cage Code:

50163

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

F17002130

Cage Code:

65519

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

041060-000

Cage Code:

66566

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

F52006053

Cage Code:

65519

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

902068

Cage Code:

55051

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

3084245-00

Cage Code:

34257

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

2698-1183

Cage Code:

08241

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1-926081-074

Cage Code:

88869

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

4014500-01

Cage Code:

36378

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

325707-1

Cage Code:

15280

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

M38510/32803BRB

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MIL-M-38510/328

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

74LS245

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

143503575

Cage Code:

31795

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SNC54LS245J883B

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

507624-45

Cage Code:

00752

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SN74LS245NDS

Cage Code:

04713

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

7100233-1

Cage Code:

10236

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

172-0245

Cage Code:

54817

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SN74LS245N-00

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

10687700

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

54LS245J

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

I05-0000-245

Cage Code:

14304

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

S54LS245F/883B

Cage Code:

18324

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

0001252

Cage Code:

25420

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

51057-0050

Cage Code:

27914

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

51057-0092

Cage Code:

27914

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

4040630-603

Cage Code:

07187

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

74LS245

Cage Code:

07263

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

349-900-067

Cage Code:

07421

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

PC73761-1

Cage Code:

09344

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

807702-016

Cage Code:

53938

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SN74LS245N8

Cage Code:

01295

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

477-1744-001

Cage Code:

94756

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

351-1724-970

Cage Code:

95105

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

351-1849-020

Cage Code:

95105

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

71011625001

Cage Code:

89944

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

806910-3

Cage Code:

96214

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

58744-90128

Cage Code:

97384

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

74LS245

Cage Code:

80131

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

74LS245N

Cage Code:

27014

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

JM38510/32803BRA

Cage Code:

81755

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

JM38510/32803BRA

Cage Code:

04713

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

M38510/32803BRX

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

JANM38510/32803BRX

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

JM38510/32803BRB

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

JM38510/32803BRX

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

10136046

Cage Code:

A486G

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC

FIIG

Concept No.

App. Key

Cond. Code

Status

INC:

31779

FIIG:

A458A0

Concept No.:

App. Key:

Cond. Code:

Status:

Definition Definition of approved item name (AIN): "MICROCIRCUIT,DIGITAL"

A microcircuit specifically designed to generate, modify, or process electrical signals which operate with two distinct or binary states. These states are commonly referred to as on and off, true and false, high and low, or "1" and "0".

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size

Pack Weight

Item Weight

Item Dim.

Pack Size:

Paclk Weight:

0.1000lbs

Item Weight:

Item Dim:

Container

OPI

SPI No.

SPI Rev.

SPC Mkg.

LVL A

LVL B

LVL C

Container:

OPI:

SPI No.:

SPI Rev.:

SPC Mkg:

LVL_A:

LVL_B:

LVL_C:

LVL A Code (LVL_A) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

LVL C Code (LVL_C) 6

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 3.

Procedure Indicator Code (OPI) M

All packaging data is mandatory for compliance and no substitutions are permitted. fast packs should be included in this category.

Special Markings Code (SPC_MKG) 39

Esd sensitive electronic device requirements of mil-std-129 apply.

Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5962-01-110-2679 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC

PMIC

ESD

ENAC

ADPE

CRITL

HMIC:

PMIC:

ESD:

ADPE:

CRITL:

Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Electrostatic Discharge (ESD) D

Represents items with both esd and emi sensitivity.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS

SMIC

MMAC

MCC

SOS:

S9E

SOS:

MMAC:

MCC:

Source of Supply (SOS) S9E

Defense supply center columbus, columbus, oh 43218

Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
