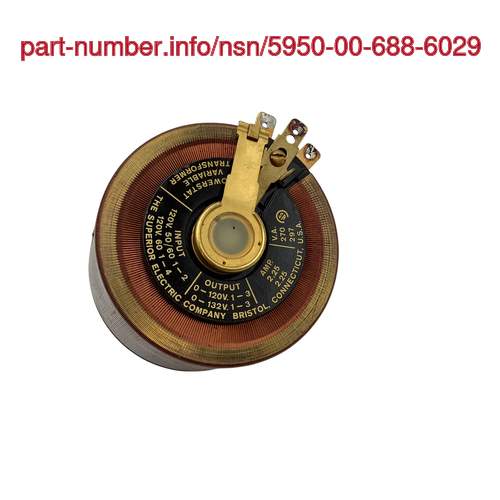

5950-00-688-6029 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5950-00-688-6029 Specification Set by the OEM (see RNCC code 3)
not established
50.0 hertz single component or 60.0 hertz single component
single phase to single phase single component
2.062in.
2.812in.
90.0 deg celsius
stream (std.tensioned replenishment at sea method) ; air traffic control central an/TSW-7C; teletype, model 28; helicopter landing system, lamps mk iii; kidd class ddg; ticonderoga cg (47) ; arleigh burke ddg; spruance dd (963) ; nimitz cvn
open
1 primary, variable autotransformer type single component
1.75 amperes ac single component single primary input and 2.25 amperes dc single component single primary input
230.0 VOLTS-Amperes single component single primary output
feat
120.00 ac volts single component single primary output and 130.00 ac volts single component single primary output
weapon system essential
3 threaded stud
End Item End items to which 5950-00-688-6029 is a component of
- AJN STREAM (STD. TENSIONED REPLENISHMENT AT SEA METHOD)
- BQN HELICOPTER LANDING SYSTEM, LAMPS MK III
- CWN TELETYPE, MODEL 28
- EZN TICONDEROGA CLASS CG (47)
- FBN SPRUANCE CLASS DD (963)
- HPF AIR TRAFFIC CONTROL CENTRAL AN/TSW-7C
- JCN KIDD CLASS DDG
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "TRANSFORMER,POWER AUTOTRANSFORME"
A transformer which incorporates the primary and secondary functions into a single winding, which is common to both input and output circuits, and is designed to change the relationship of volts and amperes between the entire winding and its taps. Includes multiple winding transformers of like design and items in which a variation of the turns ratio or inductive ratio of inductive coupling is accomplished by connection to fixed terminals. Also, includes items having a provision for mechanically changing the turns ratio in progressive increments, by means of a shaft, voltage taps, ratio adjuster, or devices of similar design. Excludes transformer (1), power; transformer (1), pulse.
