5950006481630

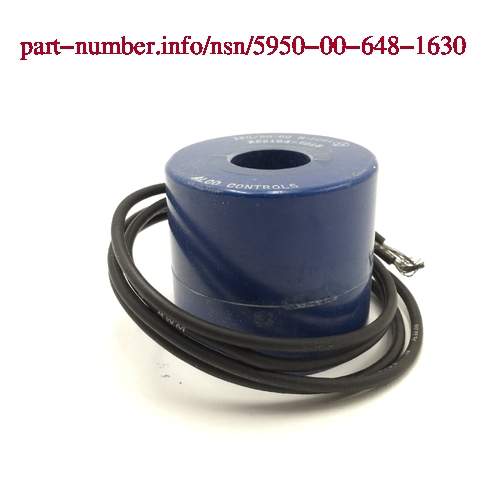

5950-00-648-1630 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5950-00-648-1630 Specification Set by the OEM (see RNCC code 3)
not established
3000 single component single winding
50.0 hertz single component or 60.0 hertz single component
1.625in.
1.875in.
1 single component
fully inclosed
terminal single group
electrical single component single winding and winding turns single component single winding
0.01264in. american wire gage single component single winding
700.0 milliamperes ac single component single winding
67.000 single component single winding
120.00 ac pounds per hour wet single component single winding
2 wire lead
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "COIL,ELECTRICAL"
An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reactance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes filter (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see suppressor, parasitic..
