5935016095284
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5935-01-609-5284 Specification Set by the OEM (see RNCC code 3)
rectangular shape
0.900in. ⁓29/32"
0.395in.
0.460in.
1
8 single mating end
1.5 single mating end single contact grouping
30.0 single mating end single contact grouping
42.0 single mating end single contact grouping
misc elec hdw
-40.0 deg celsius and 70.0 deg celsius
back single mating end single contact grouping
copper alloy single mating end single contact grouping
gold and nickel single mating end single contact grouping
crimp single mating end single contact grouping
plastic polycarbonate
8 single mating end single contact grouping
spring single mating end single contact grouping

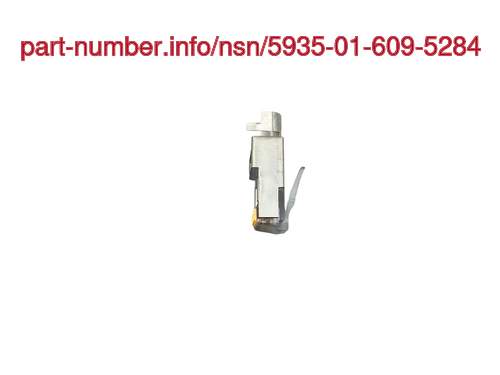

RJ-45 modular plug
contact plating gold
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "CONNECTOR,MODULAR PLUG,ELECTRICA"
An electrical fitting with contacts and having one or more cavities into which an insert module, electrical connector can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or printed wiring board. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug, tip; insert, electrical connector; insert module, electrical connector; connector body (as modified); connector, plug, electrical and socket, plug-in electronic components. See also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified). For items without inserts, see shell, electrical connector.
Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
Markings shall be omitted for sensitive, controlled or pilferable items per mil-std-129.
Packaging Codes
OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.
SPI No.: Special packaging instructions number.
LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.
SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.
5935-01-609-5284 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
Item contains gold.
No known electrostatic discharge (esd) or electromagnetic interference (emi) sensitivity.
Represents items with no adp components
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
