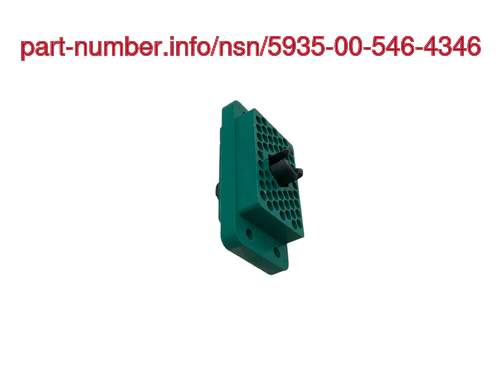

5935-00-546-4346 Specification Set by the OEM (see RNCC code 3)
2b
RIGHT-Hand
rectangular shape, center screwlock
2.275in. ⁓2-9/32"
1.180in.
1.090in.
moisture resistant and vibration resistant
1.900in.
coupling facility
1
52 single mating end
removable single mating end single contact grouping
22.0 single mating end single contact grouping
polarization boss
0.250in. ⁓1/4"
back single mating end single contact grouping
copper alloy single mating end single contact grouping
gold single mating end single contact grouping
plastic diallyl phthalate single mating end
MIL-G-45204, ty 2, cl 1 mil spec single treatment response single mating end single contact grouping
crimp single mating end single contact grouping
MIL-M-14, ty SDG-F mil spec single material response single mating end or MIL-M-19833, ty GDI-30F mil spec single material response single mating end
52 single mating end single contact grouping
round pin single mating end single contact grouping
contact surfaces gold
gold
81349-MIL-C-28748 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
unf
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "INSERT,ELECTRICAL CONNECTOR"
An insulating element with or without contact(s) designed to fit into an adapter (2), connector; connector body, plug, electrical; connector body, receptacle, electrical; connector, plug, electrical; or connector, receptacle, electrical forming an integral liner or seat. Excludes insulator (1), disk; insulator (1) plate; terminal (1), feedthru and terminal board. See also connector (as modified); connector body (as modified); and insert module, electrical connector.
5935-00-546-4346 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
Item contains gold.
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
