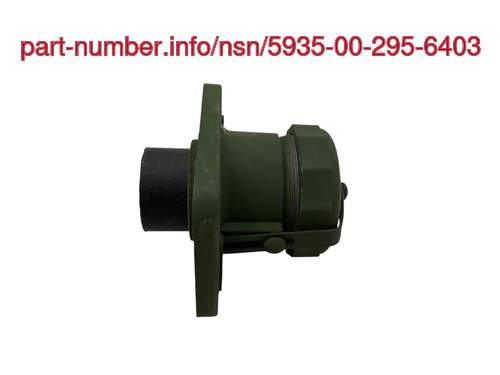

5935-00-295-6403 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5935-00-295-6403 Specification Set by the OEM (see RNCC code 3)
2a
RIGHT-Hand
straight shape w/cover
2.812in. ⁓2-13/16"
1.875in.
2.666in. and 2.806in.
4.188in.
0.281in.
3.250in.
coupling facility
1
2 single mating end
nonremovable single mating end single contact grouping
solid
externally threaded shell
12
2.125in. ⁓2-1/8"
back single mating end single contact grouping
copper alloy single mating end single contact grouping
silver single mating end single contact grouping
plastic single mating end
solder well single mating end single contact grouping
aluminum
cadmium
2 single mating end single contact grouping
round socket single mating end single contact grouping
contact surfaces silver
0.010 silver grains, troy
silver
un
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "CONNECTOR,RECEPTACLE,ELECTRICAL"
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connector(s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lampholder; jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified). For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.
