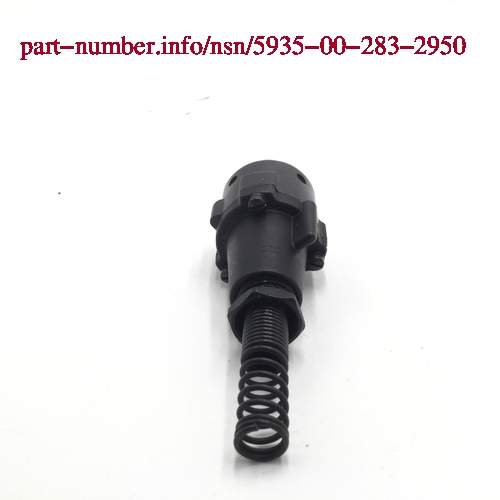

5935-00-283-2950 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5935-00-283-2950 Specification Set by the OEM (see RNCC code 3)
straight shape
2.000in. ⁓2-1/64"
1.281in. ⁓1-9/32"
watertight
1
nonremovable single mating end all contact groupings
0.5 single mating end all contact groupings
60.0 single mating end all contact groupings
contact
solid
bayonet pin
compression nut
missile minuteman LGM-30 or ship, ohio class ssn (trident)
back single mating end all contact groupings
copper alloy single mating end all contact groupings
silver single mating end all contact groupings
plastic single mating end
solder well single mating end all contact groupings
steel corrosion resisting
QQ-S-763 fed spec single material response
7 single mating end 2nd contact grouping
round pin single mating end 1st contact grouping
contact surface silver
0.010 silver grains, troy
silver
81349-MIL-C-10544 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
81349-MIL-C-10544 government specification
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "CONNECTOR,PLUG,ELECTRICAL"
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified). for items without inserts, see shell, electrical connector.
