NSN 5930-01-310-6084 NIIN 013106084 — Toggle Switch

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5930-01-310-6084
5930013106084
Description:
SWITCH,TOGGLE
NSN Assigned:
09-NOV-89
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Air Force

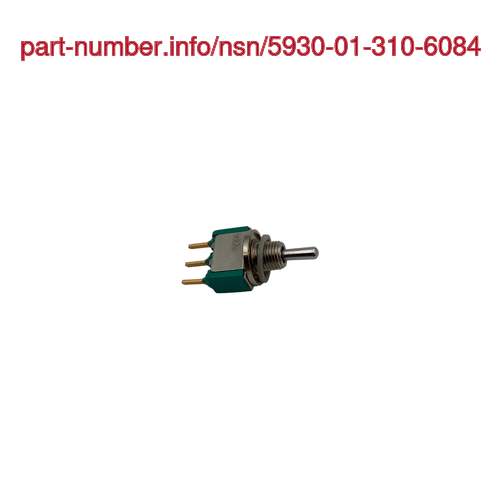

5930-01-310-6084 Images

(for reference only) NSN 5930-01-310-6084 NSN 5930-01-310-6084

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5930-01-310-6084 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

2a

Body Style AAQL:

bushing mount

Hazardous Locations/environmental Protection ABFE:

explosion proof and dustproof and moisture resistant and salt spray resistant

Overall Length ABHP:

0.495in. and 0.505in. ⁓33/64"

Overall Height ABKW:

1.212in.

Overall Width ABMK:

0.468in.

Bushing Length ABXD:

0.220in.

Body Length ADAQ:

0.495in. and 0.505in.

Body Width ADAT:

0.260in.

Case Material ADTV:

metal

Actuator Style AFUQ:

round

Actuator Diameter AFUR:

0.114in. and 0.116in.

Actuator Height AFUS:

0.340in.

Actuator Position-action Relationship AFUX:

up position momentary and down position momentary and center position maintained

End Item Identification AGAV:

weapon SYSTEM-Aircraft, AC-130H, MC-130H, EC-130E, HC-130)

Mounting Surface To Terminal End Distance AJWX:

0.652in.

Inclosure Type AKNA:

fully inclosed

Mounting Method AXGY:

threaded bushing

Thread Quantity Per Inch CMLP:

40

Nominal Thread Size CQJX:

0.250in. ⁓1/4"

Nonpile-up Contact Arrangement CRLD:

1 pole, double throw, two positions momentary single switch unit

Criticality Code Justification CRTL:

feat

Special Features FEAT:

weapon system essential

Precious Material And Location PMLC:

contact and terminal surface option gold and contacts and terminals silver

Thread Series Designator THSD:

uns

Terminal Type And Quantity TTQY:

3 printed circuit

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
165850-2
Cage Code:
37695
RNCC:
3
RNVC:
2
DAC:
A
RNAAC:
TX
Status:
A
MSDS:
SADC:
Part Number:
JT2379
Cage Code:
55588
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
JT2379
Cage Code:
79692
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
JT2379
Cage Code:
82121
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
JT2379-127
Cage Code:
81640
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
TX
Status:
A
MSDS:
SADC:
Part Number:
JT2379
Cage Code:
81640
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00184
FIIG:
A053A0
Concept No.:
App. Key:
U
Cond. Code:
1
Status:
A
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
BODY STYLE BUSHING MOUNT style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084
ACTUATOR STYLE ROUND style nsn 5930-01-310-6084

Definition Definition of approved item name (AIN): "SWITCH,TOGGLE"

A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
Q
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

Import / Export Schedule B Classification

Schedule B
NAIC
End Use
SITC
USDA
HITECH
Schedule B:
8536509065
NAICS:
335931
End Use Class:
20005
SITC:
77255
USDA:
1
HITECH:
0
Schedule B 8536509065

Switches, For A Voltage Not Exceeding 1000 Volts, Nesoi

End Use Code 20005

Electric Apparatus

Standard Intl. Trade Class (SITC) 77255

Switches For Electrical Apparatus, N.e.s., For Voltages Not Exceeding 1, 000 Volts

Freight Universal and National freight and handling information

NMFC
Class
UFC
LTL
LCL
WCC
TCC
SHC
ADC
ACC
NMFC:
061300
NMF Description:
Circuit Breaker/switch Noi
UFC:
34410
LTL:
77.5
LCL:
WCC:
72D
TCC:
Z
SHC:
9
ADC:
A
ACC:
H
Cargo Type (TCC) Z

No special type of cargo code applicable.

Water Commodity (WCC) 72D

Communications/electronics, other than sigint/ew or comsec repair parts and components.

Air Commodity (ACC) H

Instruments/equipment/supplies for radio, communications, electrical, laboratory, etc. (includes signal corps).

Air Dimensions (ADC) A

Shipment is not a consolidation and does not exceed 84 inches in any dimension.

Air Special Handling (SHC) 9

Other or no special handling required (sh)

  Freight Codes

NAIC: North American Industry Classification. Classifies items and business activity for the purpose of collecting, analyzing, and publishing statistical data related to the U.S. business economy.

SITC: Standard International Trade Classification.

NMFC: National motor freight classification. A six position numeric code, which divides articles into groups or classes according to physical characteristics. the classification is based on truckloads vs. less than truckload.

UFC: Universal freight classification. a five position numeric code, which divides articles into groups or classes according to physical characteristics. the classification is based on carload vs. less than carload.

LTL: Less than a truckload rating.

LCL: Less than a carload rating.

WCC: Water commodity code. A three position code that indicates all shipments via water.

TCC: Type of Cargo Code. A one position code for all shipments via water to identify the type of cargo included within the shipment unit.

SHC: Special Handling Code. A one position code for all shipments via water to identify the exception handling required for cargo included within the shipment unit

ADC: Air Dimension Code. A one position alpha code that identifies dimensional characteristics of air shipments by relating the length, width, or height dimensions of the largest piece to the minimum size cargo door opening of an aircraft

ACC: Air Commodity Code. A one position code for all shipments via air to identify material for manifesting and customs requirements

5930-01-310-6084 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
P
PMIC:
G
ESD:
ESD:
ADPE:
CRITL:
Y
Hazmat (HMIC) P

Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.

Precious Metals (PMIC) G

Item contains gold.

Criticality Y

The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restrictions or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
EH
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) EH

Electronic components (engineering support at the 88th ose/oss)

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Entities Major organizational entities (MOE) - see dod 4100.39-m, volume 10, table 51

Entitiy
MOECC
DSOR
MOE Rule
NIMSC
AMC
Entity:
Department Of The Air Force
Country Code:
DF
DSOR:
MOE Rule:
FXGX
NIMSC:
AMC:
3
Entity:
Poland
Country Code:
WP
DSOR:
MOE Rule:
WP01
NIMSC:
AMC:
Entity:
Australia
Country Code:
ZA
DSOR:
MOE Rule:
ZA01
NIMSC:
AMC:
Entity:
Republic Of Korea
Country Code:
ZH
DSOR:
MOE Rule:
ZH01
NIMSC:
AMC:

  What is MOE?

MOE is an acronym for "Major Organizational Entity".

These organizations represent a subdivision of a U.S. governmental organization or an agency of the north atlantic treaty organization (NATO), and other friendly governments and international organizations participating in the federal catalog program.

DSOR: Depot Source of Repair. Department of Defense (DOD) policies require that program man- agers seek best value in depot maintenance support and that the department maintains organic core depot maintenance capabilities. These policies are implemented through the Depot Source of Re- pair (DSOR) decision process.

MOE Rule: a four position code that reflects management responsibility within participating military services, civil agencies, nato and other foreign countries. the information included in the moe rule is a combination of department of defense (dod) and service/agency cataloging/supply management assignments which are made on the basis of organizational responsibilities.

NIMSC: Nonconsumable Item Material Support Code.

AMC: A code reflecting the decision of the primary inventory control activity (PICA) as to technique of purchasing to be employed from a planned procurement review.

Solicitation History DLA solicitations for NSN 5930-01-310-6084

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE7M818T4020
End Date:
10/11/2018
Qty:
99 Ea
AMSC:
C
Buyer Code:
PMCMD
PR:
0076505620
SMB:
0%
