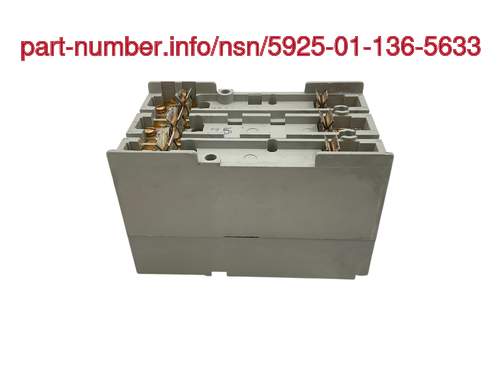

5925-01-136-5633 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5925-01-136-5633 Specification Set by the OEM (see RNCC code 3)
MULTIPOLE-Single actuator type
6.500in.
4.125in.
4.062in.
plastic
3.938in.
1.344in.
0.190in.
4.827in.
3.688in.
moderately rugged
0.188in.
3
air
4 unthreaded hole
general purpose warehouse
magnetic
75.0 amperes ac all locations
500.0 ac all locations
7500.0 ac all locations
overcurrent all locations
THERMAL-Magnetic all locations
instantaneous all locations and time delay all locations
150.0 all locations
manual
trip free
1 toggle
TRIP-Reset
at pole two
5.000 at 200 pct all locations and 15.000 at 200 pct all locations
shock resistant and vibration resistant
50.0 deg celsius all locations
circuit breaker supplied with two threaded metal inserts
400.0 all locations
81349-MIL-C-17361 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
6 quick disconnect, male
81349-MIL-C-17361/4 government specification
