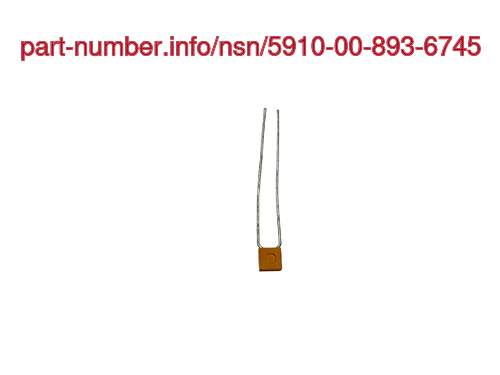

NSN 5910-00-893-6745 NIIN 008936745 — Fixed Ceramic Dielectr Capacitor

Home » FSG Index » FSG 59 - Electrical And Electronic Equipment Components » FSC 5910 - Capacitors » NSN 5910-00-893-6745

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		5910-00-893-6745
5910008936745

Description:

CAPACITOR,FIXED,CERAMIC DIELECTR

NSN Assigned:

01-JAN-62

DEMIL:

Shelf Life:

N/A

UOM:

5 EA

Using Services:

Navy

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

5910-00-893-6745 Specification Set by the OEM (see RNCC code 3)

Body Style AAQL:

w/o mtg facilities terminal (s) on one surface

Reliability Indicator AARG:

not established

Terminal Length ABJT:

1.250in.

Body Length ADAQ:

0.190in.

Body Width ADAT:

0.190in.

Body Height ADAU:

0.090in.

Center To Center Distance Between Terminals Parallel To Length AEBP:

0.185in. and 0.215in.

Schematic Diagram Designator AEBZ:

no common or grounded electrode (s)

Capacitance Value Per Section CQBQ:

1000.000 picofarads single section

Voltage Temp Limits Per Section In Percent Capacitance Change CQFB:

-25.0/+15.0 with rated voltage applied 2nd section

Nonderated Operating Temp CQJJ:

-55.0 deg celsius and 125.0 deg celsius

Nonderated Continuous Voltage Rating And Type Per Section CQWM:

200.0 dc single section

Tolerance Range Per Section CRTP:

-10.00/+10.00 percent single section

Case Material CWJK:

plastic

Insulation Resistance At Reference Temp CWPK:

100000.0 megohms

Dissipation Factor At Reference Temp In Percent CWPM:

2.5000

Power Factor At Reference Temp In Percent CWPN:

2.5000

Terminal Surface Treatment CWSG:

solder

Test Data Document TEST:

81349-MIL-C-11015/18 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.) .
