NSN 5905-01-576-1591 NIIN 015761591 — Thermal Resistor

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5905-01-576-1591
5905015761591
Description:
RESISTOR,THERMAL
NSN Assigned:
22-JUL-09
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5905-01-576-1591 Specification Set by the OEM (see RNCC code 3)

Overall Length ABHP:

27.0 mm

Overall Height ABKW:

6.0 mm

Overall Width ABMK:

6.0 mm

Body Length ADAQ:

12.5 mm

Ambient Temp At Full Rated Power AEHY:

90.0 deg celsius

Maximum Operating Temp AEHZ:

100.0 deg celsius

Thermal Time Constant In Seconds AEJA:

60.0

Probe Diameter AEJH:

3.0 mm

End Item Identification AGAV:

stmospheric/overheating monitoring

Inclosure Type AKNA:

hermetically sealed

Part Name Assigned By Controlling Agency CXCY:

thermal guard resistor

Special Features FEAT:

contact SHAPE-Make; capacity 110v ac/dc; 0.3a ac/dc; 6w ac/dc; 0.1ma/1v dc; contact resistance 150megaohms max; insulation withstanc voltage 2500vac/1 min or 3000vac/1 sec (between terminals and mounting resin surface) ; insulation resistance DC500V-100Megaohms min; general purpose

Special Test Features SPCL:

rohs compliant

Style Designator STYL:

probe bracket mounted

Supplementary Features SUPP:

compact, DUST-Proof, EXPLOSION-Proof and CORROSION-Proof; simple circuit DESIGN-No adjustment needed; OHD3 type is recommended for use with a wire harness, do not insert into printed circuit board; do not affix in close proximity to strongly magnetized parts and avlid using in a magnetic field

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
OHD3-90M
Cage Code:
0B3G8
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00309
FIIG:
A086A0
Concept No.:
1
App. Key:
A
Cond. Code:
1
Status:
A

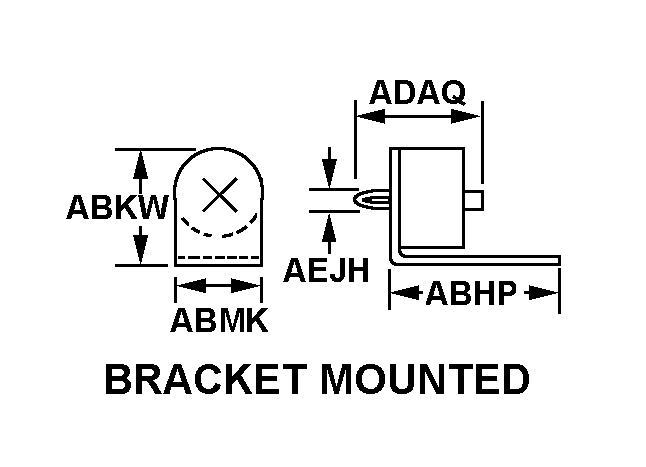

STYLE DESIGNATOR PROBE BRACKET MOUNTED style nsn 5905-01-576-1591

Definition Definition of approved item name (AIN): "RESISTOR,THERMAL"

A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see resistor (1), current regulating. Excludes transmitter (1), temperature, electrical resistance and temperature element, resistance meteorological.

5905-01-576-1591 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
C
ESD:
C
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Electrostatic Discharge (ESD) C

Represents items with emi sensitivity.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
