NSN 5905-01-165-0667

5905-01-165-0667

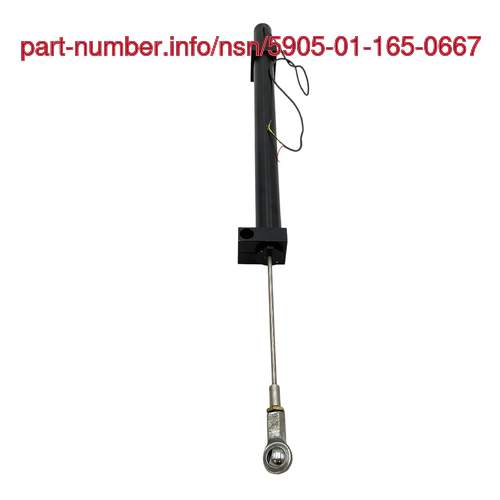

NIIN 01-165-0667 - Hybrid Variable Resistor

NSN 5905-01-165-0667 Classification

A_resistor_in_which_a_sliding_or_rolling_contact_moves_over_an_exposed_area_of_the_resistive_element._uniform_contact_pressure_on_the_resistance_element_is_maintained_by_positive_pressure_to_permit_smooth_electrical_and_mechanical_control_of_the_resistor_over_the_entire_resistance_range._the_resistive_element_is_constructed_of_a_combination_of_two_materials_usually_consisting_of_a_wirewound_element_with_a_coating_of_conductive_plastic_applied_over_the_resistance_wire_where_the_slider_makes_contact._may_be_constructed_of_a_single_or_multiturns_of_wire_supported_on_an_insulating_structure_on_which_the_wiper_contacts_the_coated_wire_continuously_in_the_direction_of_wiper_travel._the_opposition_to_the_flow_of_current_is_an_inherent_property_of_the_wire_used_and_is_manifested_in_the_heat_dissipated_in_the_resistor_itself._for_items_having_manually_positioned_taps_designed_to_be_set_and_fixed_prior_to_use,_see_resistor,_adjustable._for_items_with_step_by_step_variation,_see_rheostat;_and_resistor,_step_by_step._for_tandem-mounted_items_designed_to_function together as an attenuator (and rated accordingly), see attenuator, variable. Excludes:other resistor (1), variable, (as modified).

12.020 inches nominal body length, 20.0 single section ambient temp in deg celsius per section at full rated power, 0.750 inches nominal body diameter, single shaft actuator type, 85.0 single section ambient temp in deg celsius per section at zero percent rated power

National Stock Number: 5905-01-165-0667
Federal Supply Group: 59 - Electrical and Electronic Equipment Components
Federal Supply Classification: 5905 - Resistor
National Item Identification Number: 01-165-0667
Item Name Code: 35479
Assigned Date: Tue, Oct 25, 1983
Schedule B Code: 8533400080
Requires Demilitarization: DEMIL/MLI

NSN 5905-01-165-0667 Specification

Set by the OEM (See RNCC code 3)

Actuator Type: single shaft
Ambient Temp In Deg Celsius Per Section At Full Rated Power: 20.0 single section
Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power: 85.0 single section
Body Diameter: 0.750 inches nominal
Body Length: 12.020 inches nominal
Body Style: cylindrical friction mounted
Electrical Resistance Per Section: 8.0 kilohms single section
Features Provided: humidity proof
Fragility Factor: moderately rugged
Function Characteristic Per Section: single section linear
Function Conformity Per Section: single section independent linearity
Function Conformity Tolerance Per Section: -0.25 to 0.25 single section
Longitudinal Actuator Effective Electrical Stroke Length: 7.875 inches nominal
Longitudinal Actuator Travel: 7.875 inches nominal
Mounting Method: clamp
Power Dissipation Rating Per Section In Watts: 0.02 free air single section
Reliability Indicator: not established
Resistance Tolerance Per Section In Percent: -10.0 to 10.0 single section
Section Quantity: 1
Shaft Diameter: 0.250 inches nominal
Shaft Style: round, threaded
Shaft Length: 0.500 inches nominal
Special Features: eyelet extension on shaft
Temp Coefficient Of Resistance Per Section In Ppm Per Deg Celsius: -125.0 to 125.0 single section
Terminal Location: rear end
Terminal Type And Quantity: 3 wire lead
Thread Length: 0.250 inches nominal

Quality Commitment

Quality, Safety, and Compliance in Every Supply Requirement

Serving aerospace, military, MRO, and industrial customers with quality-first sourcing, inspected products, audited supply chain processes, and compliance-focused support.

AS9120 Certified

Audited Supply Chain

ITAR Registered

DDTC Registered

HAZMAT Certified

Customer Service Objectives

Every Product 100% Inspected

Every product is 100% inspected to support quality assurance, safety, documentation, and dependable delivery for critical aerospace, defense, MRO, and industrial sourcing requirements.

NSN 5905-01-165-0667 Material

Hazmat, Precious Metals, Criticality, Environment, and ESD

(PMIC) Precious Metals Indicator

Item does not contain precious metal.

What does the A code means?

Precious metals indicator code (pmic): this code is to identify items that have precious metals as part of their content. Precious metals are those metals generally considered to be uncommon and highly valuable which are relatively superior in certain properties such as resistance to corrosion and electrical conductivity. The precious metals recovery program for the federal government encompasses gold, silver, platinum, and the platinum family which consists of palladium, iridium, rhodium, osmium, and ruthenium. See volume 10, table 160 and quick info on-line.

(HMIC) Hazardous Metal Indicator

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

What does the N code means?

Hazardous materials indicator code: a code established in the dlis total item record (tir) to identify to users of the federal catalog system all known or suspected hazardous items as defined by safety/health, transaction and/or environmental regulations, to serve as a flag that a procuring activity must acquire a material safety data sheet when a hazardous item is procured, and to inform federal catalog system users when more detailed information on an item is available in the hazardous material information system. See volume 10, table 179 and quick info on-line.

Criticality Code

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

What does the X code means?

Criticality code, federal item identification guide: a code which indicates when an item is technically critical, by reason of tolerance, fit, application, nuclear hardness properties or other characteristic which affects identification of the item. See volume 10, table 181 and quick info on-line.

Cross Reference Parts

Part numbers that meet the specification outlined on this page and set by the OEM

Part Number	CAGE	RNCC	RNVC	DAC	RNAAC	MSDS	SADC
08LF7557	25413	5	9	5	ZZ	-	-
D40598	K1474	3	2	A	TX	-	-
FCPST510-52	03929	5	1	A	ZZ	-	-

Price Quote

Get an up to date pricing and availability quote for 5905-01-165-0667.

Stock Availability

This product is available in the following quantities and conditions:

(OH) Overhauled	1
(NE) New Material	1
In Stock	2

Availability of this item was last updated 07/11/2026 10:07 AM EDT.

Stock Items Available

Last Update: 10 hours ago

View Stock Items
