NSN 2815-01-275-1479 NIIN 012751479 — Precombustion Chamber

Home » FSG Index » FSG 28 - Turbines And Components Engines » FSC 2815 - Diesel Engines And Components » NSN 2815-01-275-1479
NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
2815-01-275-1479
2815012751479
Description:
CHAMBER,PRECOMBUSTION
NSN Assigned:
18-MAR-88
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Coast Guard

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

2815-01-275-1479 Specification Set by the OEM (see RNCC code 3)

Overall Length ABHP:

4.340in. ⁓4-11/32"

Body Diameter ABPM:

1.812 in.

Thread Size ABUJ:

7/16-24

End Item Identification AGAV:

caterpillar model D333 marine diesel engines serial numbers 59B663 thru 59B989 onboard 210 ft wmec class coast guard vessels

Included Angle In Deg AKZZ:

60.0

Orifice Diameter AMSF:

0.312 in.

Err Default CDWF:

err default

Err Default CDWJ:

err default

Material MATL:

steel

Material MATT:

steel

Style Designator STYL:

energy cell type w/glow plug accommodation

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
3S501
Cage Code:
11083
RNCC:
3
RNVC:
2
DAC:
6
RNAAC:
XF
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
33265
FIIG:
T267-L
Concept No.:
App. Key:
LA
Cond. Code:
1
Status:
A

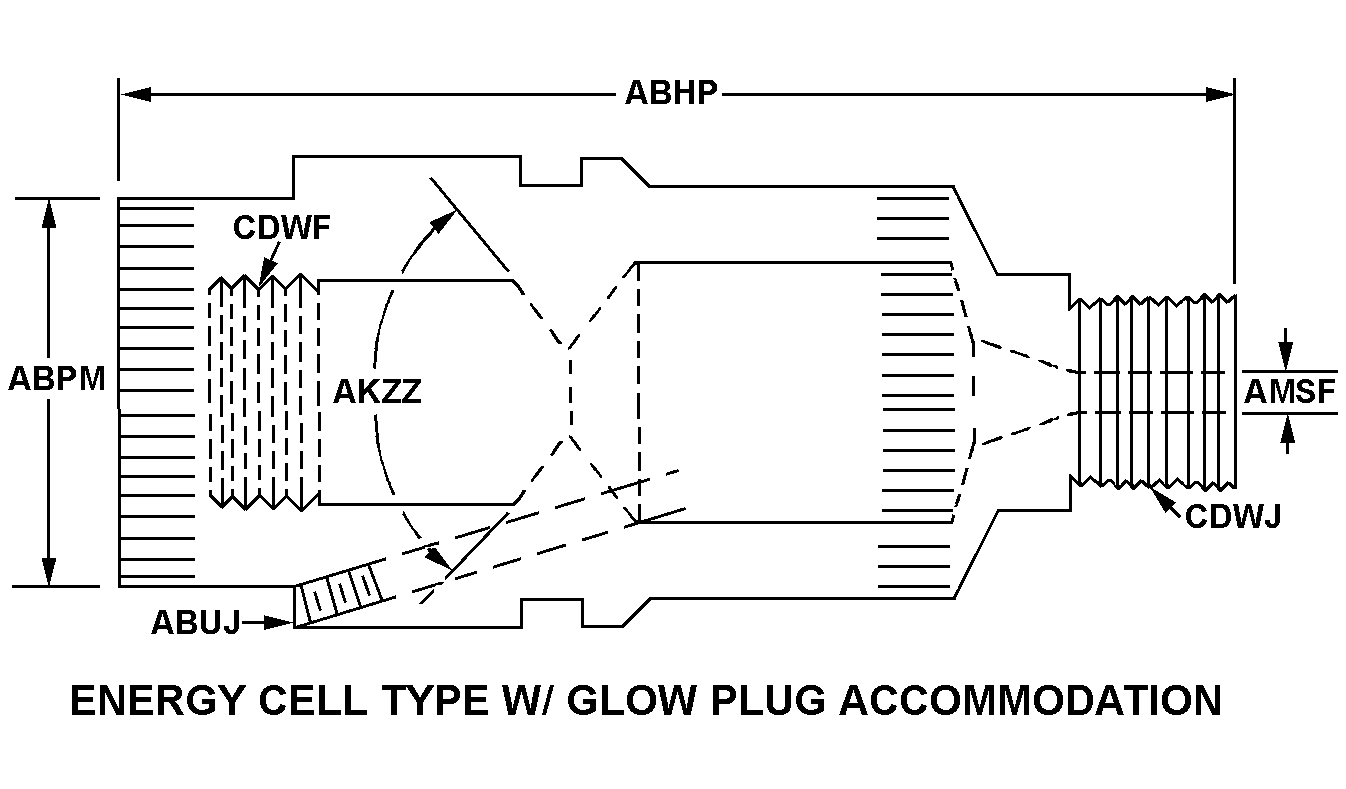

STYLE DESIGNATOR ENERGY CELL TYPE W/GLOW PLUG ACCOMMODATION style nsn 2815-01-275-1479

Definition Definition of approved item name (AIN): "CHAMBER,PRECOMBUSTION"

An item specifically designed to be used as an auxiliary chamber in which combustible gases are ignited and combustion started ahead of the main combustion chamber of a diesel engine. It may have provisions for a glow plug or a wick to ignite the fuel mixture during cold weather starting.

2815-01-275-1479 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
