NSN:
9390-00-211-6023
9390002116023
Description:
NONMETALLIC ANGLE
NSN Assigned:
09-MAY-73
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

9390-00-211-6023 Specification Set by the OEM (see RNCC code 3)

Cross-sectional Shape Style AAGR:

angle

Nonmetallic Hardness Rating AASF:

60.0 shore durometer a

Minimum Tensile Strength AASH:

1500 pounds per square inch

Temp Rating ABJH:

-10.0 deg fahrenheit and 110.0 deg fahrenheit

Overall Height ABKW:

2.188in.

Length ABRY:

228.000in.

Left Side Flange Thickness ADXL:

0.250in.

Left Inside Angle In Deg ADXZ:

67.0

Physical Form AGXW:

cellular or solid

Outer Radius Where Left Flange Joins Base Flange AJGM:

0.359in.

Left Side Flange Top Radius AJGN:

0.219in.

Base Flange Thickness AJGP:

0.250in.

Left-side Flange Tip Style BHQU:

left full radius

Base Flange Tip Style BHQV:

base square end

Special Features FEAT:

color, black, MATERIAL-Plastic, ETHYLENE-Propylene

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
EX1
Cage Code:
36334
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
CX
Status:
A
MSDS:
SADC:
Part Number:
R400175
Cage Code:
36334
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
1145-10-1
Cage Code:
36334
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
30217
FIIG:
A547B0
Concept No.:
App. Key:
Cond. Code:
1
Status:
A
CROSS-SECTIONAL SHAPE STYLE ANGLE style nsn 9390-00-211-6023
CROSS-SECTIONAL SHAPE STYLE ANGLE style nsn 9390-00-211-6023
CROSS-SECTIONAL SHAPE STYLE ANGLE style nsn 9390-00-211-6023
CROSS-SECTIONAL SHAPE STYLE ANGLE style nsn 9390-00-211-6023
CROSS-SECTIONAL SHAPE STYLE ANGLE style nsn 9390-00-211-6023

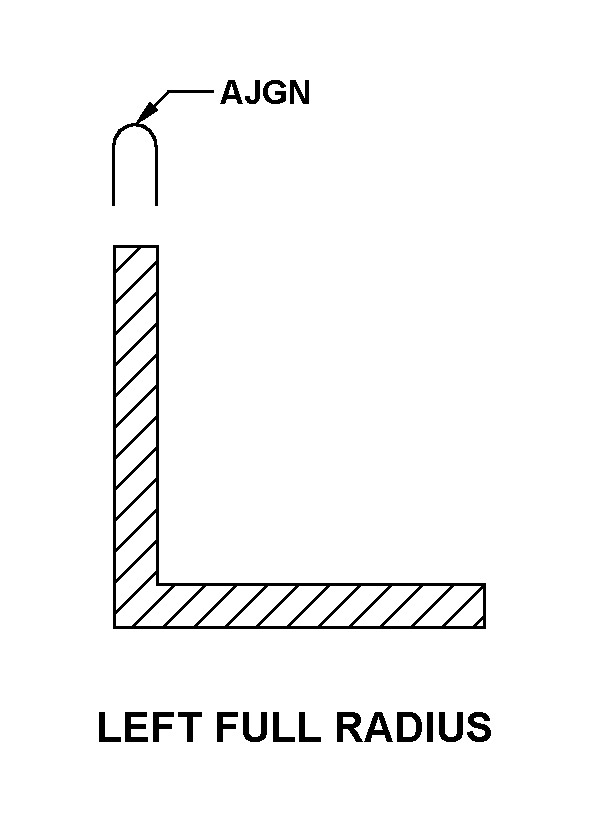

LEFT-SIDE FLANGE TIP STYLE LEFT FULL RADIUS style nsn 9390-00-211-6023
BASE FLANGE TIP STYLE BASE SQUARE END style nsn 9390-00-211-6023

Definition Definition of approved item name (AIN): "NONMETALLIC ANGLE"

A structural shape fabricated from nonmetallic material(s) resembling the letter "l" in cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes seal, nonmetallic angle.
