9390-00-138-8902 Specification Set by the OEM (see RNCC code 3)

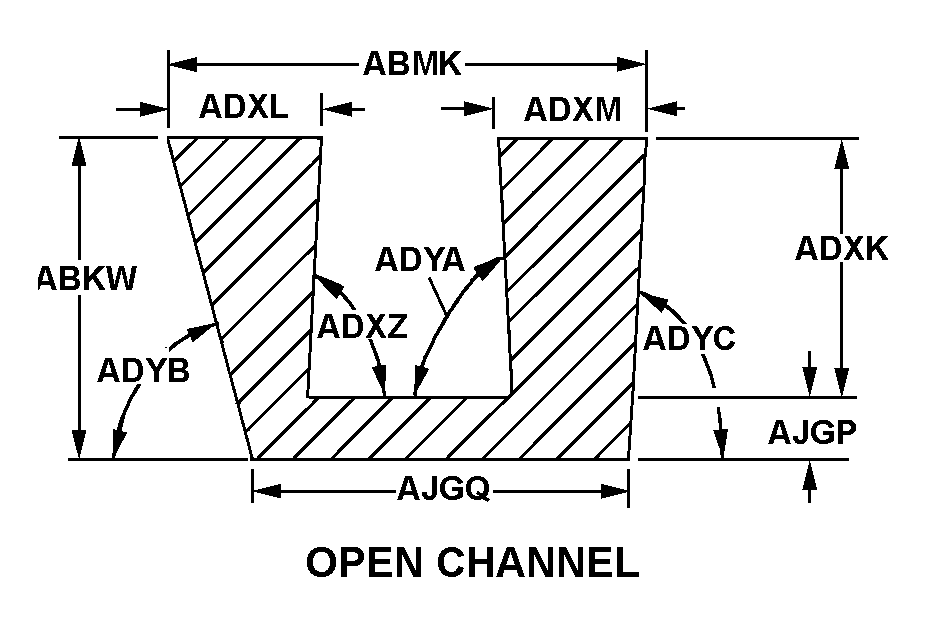

open cahnnel
55.0 shore durometer a and 65.0 shore durometer a
0.349in.
0.375in.
41.000in.
0.301in.
0.062in.
0.062in.
0.062in.
75.0
err default
err default
err default
solid
0.125in.
0.375in.
left square end
right offset/ right square w/ INSIDE-Outside radii
black
rubber chloroprene
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "NONMETALLIC CHANNEL"
A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing excludes seal, nonmetallic channel.
9390-00-138-8902 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
Precious metal content is unknown
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
