5805-01-539-5798 Specification Set by the OEM (see RNCC code 3)
7.500in.
14.000in. ⁓14-1/64"
9.500in.
miscellaneous parts intrr communications lcs 0001
sound powered
external bell
separate box
included
not furnished
not included
model SELR-Pb, MODIFIED-Model, SOUND-Powered telephone; inavy: station, sound power
2for use in high noise areas where visual indication is required; 19 stations with a H27A jack to the left of coiled cord and 6 inch external steel gong (bell) , indicator light, "push to reset" button, and a latching relay; total weight 10 lbs
gray

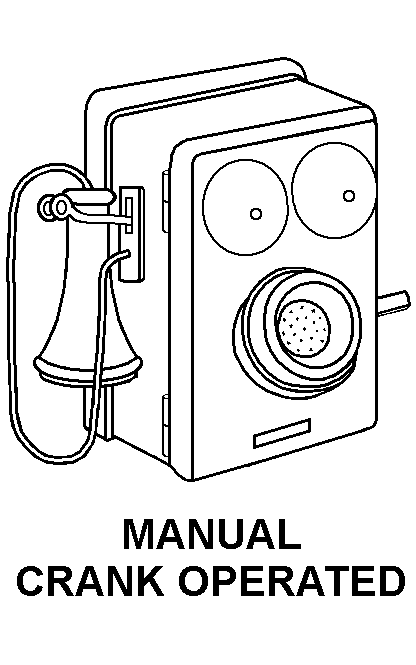

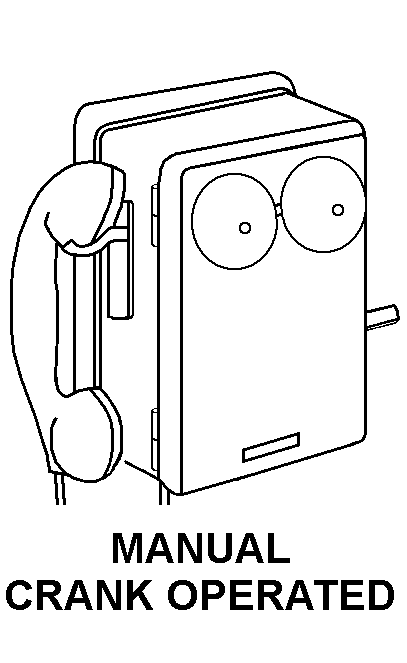

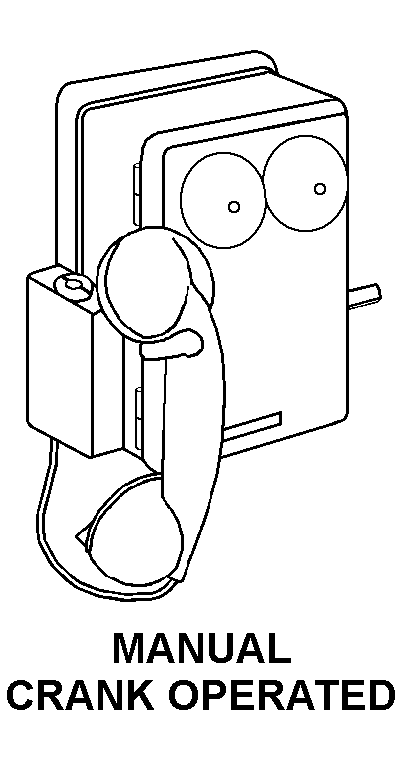

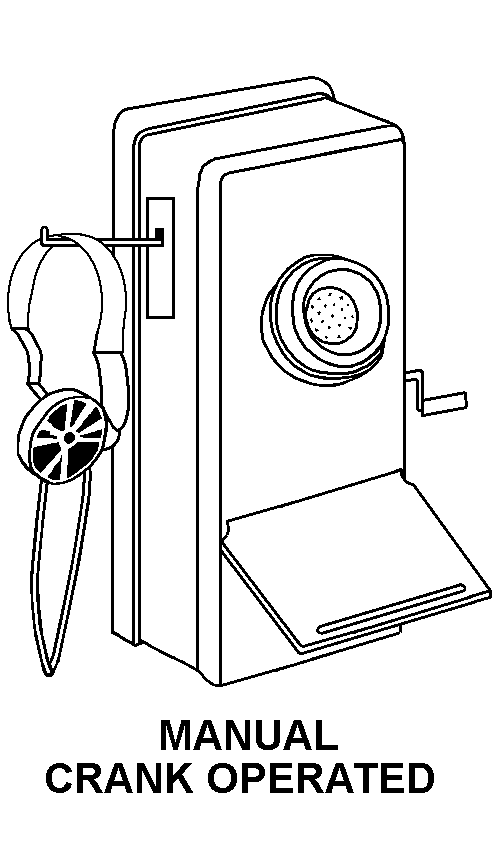

manual crank operated
SELR-PB-196J
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "TELEPHONE"
An item specifically designed to convert sound into variations of an electric current and to reconvert similar variations into their original sound with sufficient accuracy for clear intelligibility. It consists of a telephone transmitter, telephone receiver, and a switch and is primarily used for voice communications. Includes pedestal type, cradle type and hang-up type telephones. Does not include separate handsets or head and chest sets.
5805-01-539-5798 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Item does not contain precious metal.
Represents items with no adp components
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
Material Management Material categorization and source of supply
Defense logistics agency, enterprise business systems
Material Codes
SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.
SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.
MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.
MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category
IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
