5325-00-803-7303 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5325-00-803-7303 Specification Set by the OEM (see RNCC code 3)
rectangular
0.683in. and 0.698in.
not casehardened
0.040in. and 0.044in.
external
external
66.0 rockwell superficial 30-n and 71.0 rockwell superficial 30-n
steel, fed std 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090
steel, fed std 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090
cadmium and chromate or chromate zinc
cadmium, QQ-P-416, type 2, class 3 or zinc plated, MIL-C-81562, ty 2 cl 3
End Item End items to which 5325-00-803-7303 is a component of
- A7N MAIN FEED PUMPS
- A9N SYSTEMS, JP-5 AVIATION FUELS
- ACF SUPPORT EQUIPMENT, B-1 AIRCRAFT
- AEN BOILERS, 1200 PSI
- AGN L.P. COMPRESSORS
- AHN FIRE PUMPS
- AKN GUN, 5-IN./54 CAL, MK-45
- ATF AIRCRAFT, SOF ( AC-130H, MC-130H, EC-130E, HC-130)
- AUF TRAINER, B-1B AIRCRAFT
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)

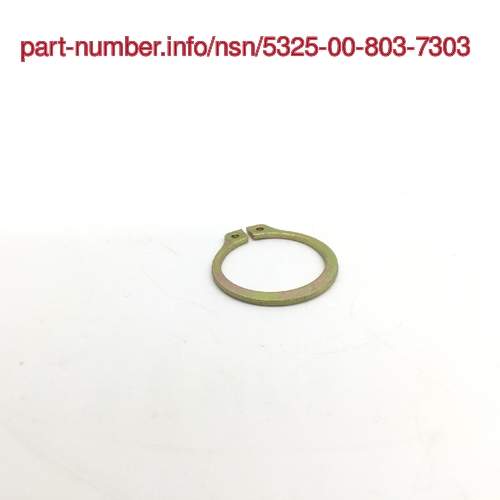

Definition Definition of approved item name (AIN): "RING,RETAINING"
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see push on nut. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also clip, retaining and pin, lock. Excludes ring, connecting, round.
