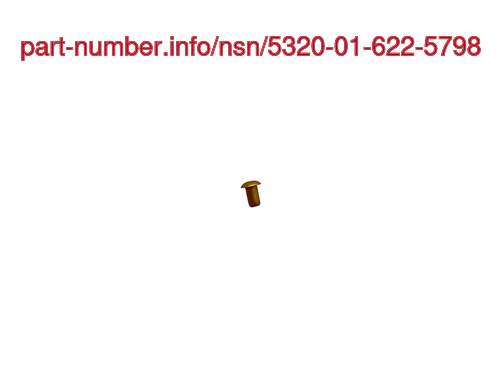

NSN 5320-01-622-5798 NIIN 016225798 — Solid Rivet

Home » FSG Index » FSG 53 - Hardware And Abrasives » FSC 5320 - Rivets » NSN 5320-01-622-5798
NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5320-01-622-5798
5320016225798
Description:
RIVET,SOLID
NSN Assigned:
15-OCT-13
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5320-01-622-5798 Specification Set by the OEM (see RNCC code 3)

Fastener Length AASB:

0.187in. ⁓3/16"

Head Style AASK:

brazier

Shank Diameter AAZE:

0.094in.

Shank Style AAZF:

straight w/radius chamfered tip

Minimum Tensile Strength CQBC:

26000 pounds per square inch

Material MATT:

aluminum alloy 2117

Material Document And Classification MDCL:

MS20470 assn std 1st material response or MS20426 assn std 2nd material response

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
NAS1242AD3-3
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
3
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00861
FIIG:
A040A0
Concept No.:
App. Key:
H
Cond. Code:
1
Status:
A
HEAD STYLE BRAZIER style nsn 5320-01-622-5798
SHANK STYLE STRAIGHT W/RADIUS CHAMFERED TIP style nsn 5320-01-622-5798

Definition Definition of approved item name (AIN): "RIVET,SOLID"

A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

5320-01-622-5798 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
A
ESD:
A
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Electrostatic Discharge (ESD) A

No known electrostatic discharge (esd) or electromagnetic interference (emi) sensitivity.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
