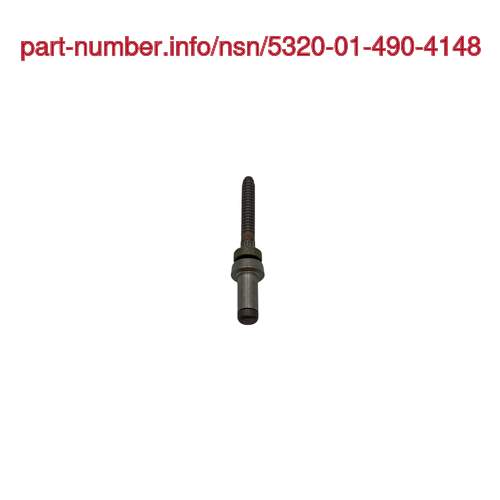

NSN 5320-01-490-4148 NIIN 014904148 — Blind Rivet

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5320-01-490-4148
5320014904148
Description:
RIVET,BLIND
NSN Assigned:
26-SEP-01
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5320-01-490-4148 Specification Set by the OEM (see RNCC code 3)

Head Style AASK:

tapered pan

Head Height AASU:

0.120in. and 0.135in. ⁓9/64"

Shank Diameter AAZE:

0.197in. and 0.199in.

Shank Style AAZF:

SELF-Plugging mechanically locked stem

Head Major Diameter AAZG:

0.305in. and 0.332in.

End Item Identification AGAV:

F-22 raptor

Grip Length ANEE:

0.385in.

Minimum Tensile Strength CQBC:

1690 pounds per square inch

Shear Strength CQSX:

2925 single pounds per square inch

Material MATT:

titanium stem

Material Document And Classification MDCL:

ASTMB348 assn std single material response or AMS5690 assn std single material response collar

Surface Treatment SFTT:

passivate sleeve

Surface Treatment Document And Classification STDC:

QQ-P-35 fed spec single treatment response sleeve

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
SBP-EV06-03
Cage Code:
0HDW7
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00864
FIIG:
A040A0
Concept No.:
App. Key:
G
Cond. Code:
1
Status:
A
HEAD STYLE TAPERED PAN style nsn 5320-01-490-4148
SHANK STYLE SELF-PLUGGING MECHANICALLY LOCKED STEM style nsn 5320-01-490-4148

Definition Definition of approved item name (AIN): "RIVET,BLIND"

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes nut, blind assembly.

Related NSNs

Related NSN
Service
OOU
JTC
Phrase
Related NSN:
5320-01-488-2789
Service Code:
OOU:
JTC:
Phrase Code:
E
Related NSN:
5320-01-488-2789
Service Code:
OOU:
JTC:
Phrase Code:
E
Phrase Code E

Indicates the item represented by the nsn in the input/output header is replaced by the interchangeable preferred item represented by the nsn in the segment h (stocks will be used until exhausted). Must be used in combination with phrase code g addressed to the nsn in the segment h.

  Relationship Codes

OOU: Order of Use. Three position alpha code denoting the interchangeability and substitutability (I&S) relationship of a national stock number within a service/agency I&S family.

JTC: Jump to Code. Three position alpha code that denotes an exception to the normal sequence to be followed in the attrition of items within an interchangeability and substitutability (I&S) family.

Phrase Code: A one position code assigned to a phrase used in the management data list to denote changes and/or relationships between national stock numbers and reference data.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
9.0 X 5.0 X 5.0
Paclk Weight:
0.0000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5320-01-490-4148 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
A
ESD:
A
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Electrostatic Discharge (ESD) A

No known electrostatic discharge (esd) or electromagnetic interference (emi) sensitivity.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
FR
MCC:
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) FR

F/a-22 raptor aircraft

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 5320-01-490-4148

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE5E918T1516
End Date:
11/24/2017
Qty:
196 Ea
AMSC:
D
Buyer Code:
PHPHA
PR:
0071764885
SMB:
0%
Solicitation:
SPE5E915T5020
End Date:
04/16/2015
Qty:
128 Ea
AMSC:
D
Buyer Code:
PHPHA
PR:
0057268011
SMB:
100%
