5320-00-005-8306 Images
(for reference only)

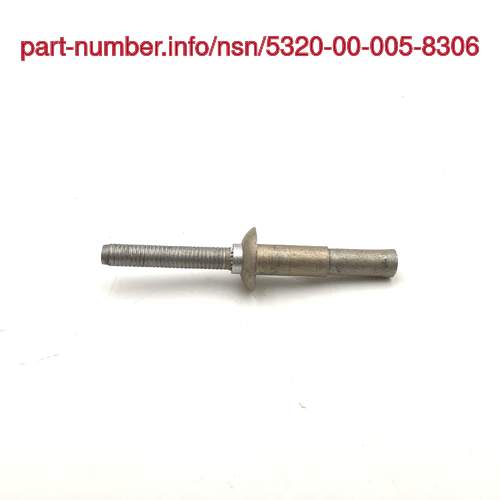

Aluminum material, Fastener Length: 0.635".
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5320-00-005-8306 Specification Set by the OEM (see RNCC code 3)
MIL-C-5541 mil spec single treatment response stem
chromate stem
0.635in. ⁓41/64"
universal
0.249in. and 0.253in.
0.107in. and 0.117in. ⁓1/8"
SELF-Plugging mechanically locked stem
0.475in. and 0.525in.
0.376in. and 0.437in.
serrated STEM-Type w
aluminum alloy 5056 locking ring
H-38 strain hardened locking ring
1920 single pounds per square inch
QQ-A-430 fed spec single material response locking ring
80205-NAS1398 professional/industrial association standard
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "RIVET,BLIND"
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes nut, blind assembly.
