NSN 5310-01-644-1361 NIIN 016441361 — Self-locking Hexagon Nut

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-01-644-1361
5310016441361
Description:
NUT,SELF-LOCKING,HEXAGON
NSN Assigned:
22-APR-15
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

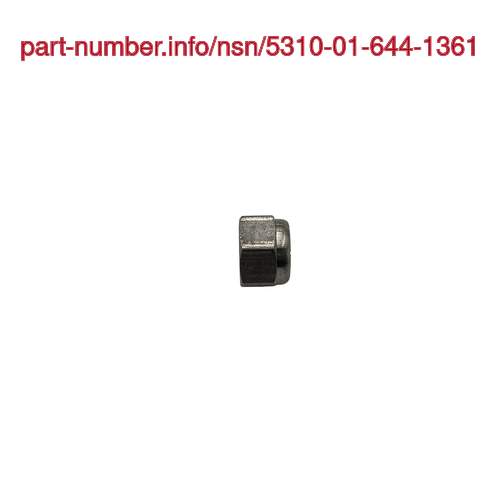

5310-01-644-1361 Images

(for reference only) NSN 5310-01-644-1361

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-01-644-1361 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

2b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design or prevailing torque with nonmetallic insert

Lubrication ABAJ:

dry film lubricant

Nut Style ACTA:

hexagon

Nut Height ADEA:

0.298in. and 0.328in. ⁓21/64"

Iii End Item Identification AGAV:

AA49E/H60S

Width Across Flats ASDB:

0.428in. and 0.439in. ⁓29/64"

Temp Rating AZKQ:

250.0 deg fahrenheit

Thread Series BZRR:

unf

Thread Quantity Per Inch CMLP:

28

Nominal Thread Size CQJX:

0.250in. ⁓1/4"

Bearing Surface Type CRTM:

chamfered or washer faced

Iii Bearing Surface Finish CSXL:

125.0 microinches

Material MATT:

steel comp 316 nut

Surface Treatment SFTT:

passivate except insert

Surface Treatment Document And Classification STDC:

ams 2700. method 1, type 6 or 7, class 1 assn std single treatment response except insert

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
M45913/1-4FS6
Cage Code:
81349
RNCC:
2
RNVC:
2
DAC:
3
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
05277
FIIG:
A021A0
Concept No.:
1
App. Key:
BK
Cond. Code:
1
Status:
A
NUT STYLE HEXAGON style nsn 5310-01-644-1361
NUT STYLE HEXAGON style nsn 5310-01-644-1361
NUT STYLE HEXAGON style nsn 5310-01-644-1361

Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,HEXAGON"

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes nut (1), self-locking, cap.

5310-01-644-1361 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
