NSN 5310-01-527-9522 NIIN 015279522 — Self-locking Hexagon Nut

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-01-527-9522
5310015279522
Description:
NUT,SELF-LOCKING,HEXAGON
NSN Assigned:
25-FEB-05
DEMIL:
NO
Shelf Life:
N/A
UOM:
25 EA
Using Services:
Navy, Marines, Army

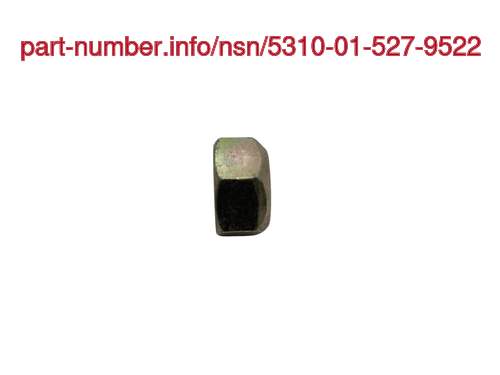

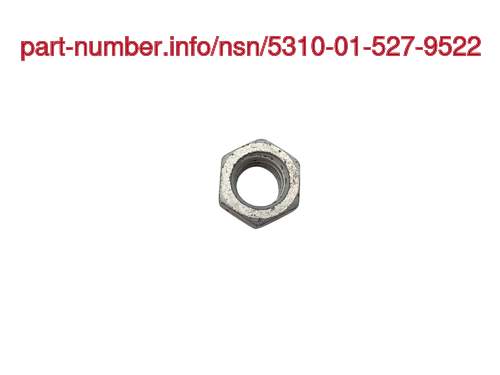

5310-01-527-9522 Images

(for reference only) NSN 5310-01-527-9522

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-01-527-9522 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

2b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design

Nut Style ACTA:

hexagon

Nut Height ADEA:

0.427in. and 0.573in. ⁓37/64"

End Item Identification AGAV:

2350-01-513-4793; M915A1 armor kit nsn 2540-01-527-1418; mrap RG-33

Width Across Flats ASDB:

0.736in. and 0.752in. ⁓49/64"

Temp Rating AZKQ:

250.0 deg fahrenheit

Thread Series BZRR:

unc

Thread Quantity Per Inch CMLP:

13

Nominal Thread Size CQJX:

0.500in. ⁓1/2"

Bearing Surface Type CRTM:

chamfered

Material MATT:

steel

Material Document And Classification MDCL:

sea J995, gr 8 assn std single material response

Surface Treatment SFTT:

zinc

Surface Treatment Document And Classification STDC:

astm B633, ty ii, fe/zn 8 assn std single treatment response
