5310-01-482-6452 Specification Set by the OEM (see RNCC code 3)
3b
RIGHT-Hand
prevailing torque with metallic insert
0.725in. and 0.770in.
soluble lubricant
0.548in. and 0.578in.
castellated hexagon
0.070in.
V-22 aircraft
0.554in. and 0.566in. ⁓37/64"
450.0 deg fahrenheit
unjf
20
0.500in. ⁓1/2"
agav

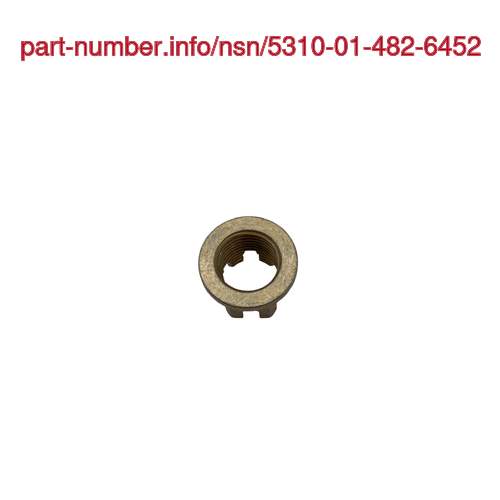

nut, SELF-Locking, lightweight, castellaed, 450 degree f
reference cotterpin size - 3/32in. (0.09375) ; navy - nut, SELF-Locking, aircraft
steel comp 1035 or steel comp 1042 or steel comp 1050 or steel comp 1137 or steel comp 11L37 or steel comp 4027 or steel comp 4037 or steel comp 8740
ams 5080 assn std 1st material response or QQ-S-700 fed spec 2nd material response or ams 5085 assn std 3rd material response or ams 5024 assn std 4th material response or ams 5020 assn std 5th material response or astm A322 uns G40270 assn std 6th material response or astm A322, uns G40370 assn std 7th material response or astm 331, uns G40370 assn std 7th material response or astm A519, uns G40370 assn std 7th material response or astm A547, uns G40370 assn std 7th material response or ams 6322, uns G87400 assn std 8th material response or ams 6323, uns G87400 assn std 8th material response or ams 6325, uns G87400 assn std 8th material response or ams 6327, UNS87400 assn std 8th material response or AMS6358, uns G87400 assn std 8th material response
cadmium
QQ-P-463 fed spec single treatment response
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,EXTENDED WASHER"
A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
No special marking.
Packaging Codes
OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.
SPI No.: Special packaging instructions number.
LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.
SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.
5310-01-482-6452 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Item does not contain precious metal.
Represents items with no adp components
The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restrictions or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
Material Management Material categorization and source of supply
Defense logistics agency, enterprise business systems
Joint vertical lift aircraft cv-22 (osprey)
Mv-22 aircraft
Material Codes
SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.
SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.
MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.
MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category
IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
