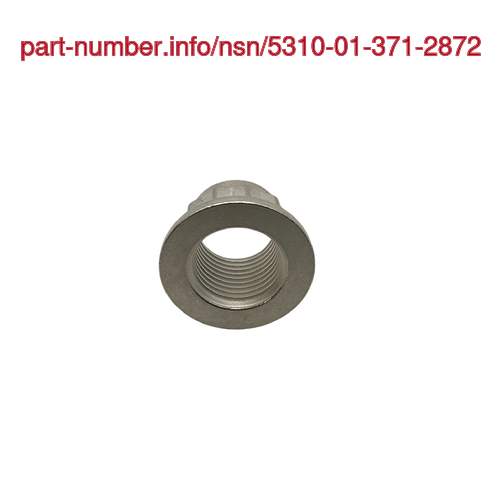

NSN 5310-01-371-2872 NIIN 013712872 — Self-locking Extended Washer Nut

Home » FSG Index » FSG 53 - Hardware And Abrasives » FSC 5310 - Nuts And Washers » NSN 5310-01-371-2872
NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-01-371-2872
5310013712872
Description:
NUT,SELF-LOCKING,EXTENDED WASHER
NSN Assigned:
10-FEB-93
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-01-371-2872 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design

Washer Outside Diameter AAVX:

0.984in. and 1.024in.

Overall Height ABKW:

0.625in.

Nut Style ACTA:

double hexagon

Washer Thickness ADEM:

0.084in.

Width Across Flats ASDB:

0.741in. and 0.752in. ⁓49/64"

Thread Series BZRR:

unjf

Thread Quantity Per Inch CMLP:

18

Nominal Thread Size CQJX:

0.625in. ⁓5/8"

Material MATT:

iron alloy 660

Material Document And Classification MDCL:

AMS5737 assn std single material response

Precious Material PRMT:

silver

Surface Treatment SFTT:

silver

Surface Treatment Document And Classification STDC:

AMS4210 assn std single treatment response

Specification/standard Data ZZZK:

80205-NAS1805 professional/industrial association standard

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
NAS1805-10P
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
NAS1805-10P
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
NAS1805-10P
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
NAS1805-10P
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
NAS1805-10P
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
29729
FIIG:
A021A0
Concept No.:
1
App. Key:
BS
Cond. Code:
1
Status:
A
NUT STYLE DOUBLE HEXAGON style nsn 5310-01-371-2872
NUT STYLE DOUBLE HEXAGON style nsn 5310-01-371-2872

Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,EXTENDED WASHER"

A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

5310-01-371-2872 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
S
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) S

Item contains silver.

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
