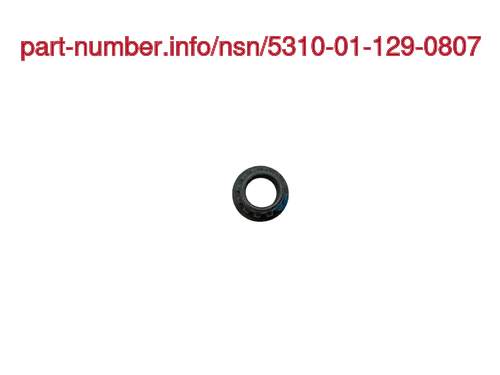

NSN 5310-01-129-0807 NIIN 011290807 — Self-locking Extended Washer Nut

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-01-129-0807
5310011290807
Description:
NUT,SELF-LOCKING,EXTENDED WASHER
NSN Assigned:
31-MAR-82
DEMIL:
NO
Shelf Life:
N/A
UOM:
100 EA
Using Services:
Navy

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-01-129-0807 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design

Washer Outside Diameter AAVX:

0.563in.

Lubrication ABAJ:

dry film lubricant

Overall Height ABKW:

0.312in.

Nut Style ACTA:

spline drive

Drive Point Quantity ADBM:

12

Washer Thickness ADEM:

0.035in.

Thread Series BZRR:

unjf

Thread Quantity Per Inch CMLP:

24

Nominal Thread Size CQJX:

0.312in. ⁓5/16"

Material MATT:

nickel alloy 718

Material Document And Classification MDCL:

ams 5662 assn std single material response or ams 5663 assn std single material response

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
H50609-5
Cage Code:
15653
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
BH752-5
Cage Code:
27238
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
78686-5
Cage Code:
56878
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
3929AS1232-5
Cage Code:
072E5
RNCC:
3
RNVC:
2
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
3929AS1232-5
Cage Code:
30003
RNCC:
7
RNVC:
2
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
ST3M752-5
Cage Code:
76301
RNCC:
7
RNVC:
2
DAC:
1
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
LH12038-5
Cage Code:
72962
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
10109520
Cage Code:
A486G
RNCC:
6
RNVC:
9
DAC:
9
RNAAC:
WF
Status:
A
MSDS:
SADC:
Part Number:
SLN187-5
Cage Code:
16258
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
36744
FIIG:
A021A0
Concept No.:
1
App. Key:
BS
Cond. Code:
1
Status:
A
NUT STYLE SPLINE DRIVE style nsn 5310-01-129-0807
NUT STYLE SPLINE DRIVE style nsn 5310-01-129-0807

Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,EXTENDED WASHER"

A nut, circular in shape, having wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery. It has an integral washer which extends beyond the wrenching element periphery and an integral feature is incorporated for locking on the threads of a mating member.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5310-01-129-0807 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
CRITL:
F
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Criticality F

The item is an aviation critical safety item/flight safety critical aircraft part (acsi/fscap).

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
