NSN 5310-00-809-4058 NIIN 008094058 — Flat Washer

Home » FSG Index » FSG 53 - Hardware And Abrasives » FSC 5310 - Nuts And Washers » NSN 5310-00-809-4058

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		5310-00-809-4058
5310008094058

Description:

WASHER,FLAT

NSN Assigned:

01-JAN-62

DEMIL:

Shelf Life:

N/A

UOM:

1 HD

Using Services:

Marines, Navy, Coast Guard, Air Force, Army

5310-00-809-4058 Images

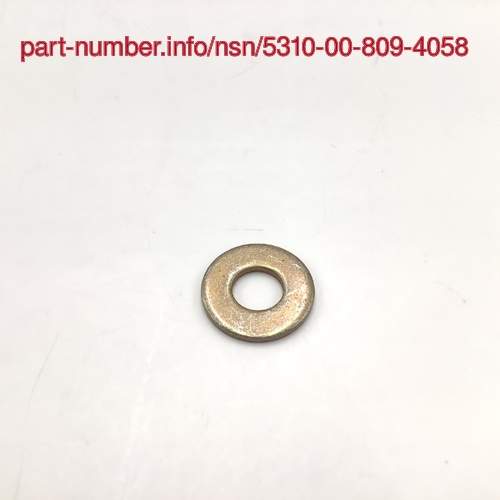

(for reference only) NSN 5310-00-809-4058

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

5310-00-809-4058 Specification Set by the OEM (see RNCC code 3)

Cross-sectional Shape Style AAGR:

rectangular

Hole Diameter AAUB:

0.276in. and 0.296in. ⁓19/64"

Peripheral Shape Style ABMW:

round

Center Hole Shape Style ABMX:

1 round

Thickness ABNM:

0.051in. and 0.080in. ⁓3/32"

Overall Diameter ADAV:

0.620in. and 0.640in. ⁓41/64"

End Item Identification AGAV:

family of hemtt vehicles (heavy expanded mobility tactical trucks) ; 3990-01-444-5196 cement mixer; RG-33 auv mrap; mrap - cougar

Criticality Code Justification CRTL:

feat

Special Features FEAT:

weapon system essential

Material MATT:

steel comp 1008 or steel comp 1009 or steel comp 1010 or steel comp 1011 or steel comp 1012 or steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020

Material Document And Classification MDCL:

astm A109 assn std all material responses

Surface Treatment SFTT:

cadmium and chromate

Surface Treatment Document And Classification STDC:

QQ-P-416, ty 2, cl 3 fed spec single treatment response

Nondefinitive Spec/std Data ZZZT:

a type and 1 grade and a class

End Item End items to which 5310-00-809-4058 is a component of

AAA REPAIR FACILITY, OA8991
ABA TEST STATION, OQ-290(V)MSM
ABM DIRECT AIR SUPPORT CENTRAL, AN/UYQ-3A (V) 2
ACF SUPPORT EQUIPMENT, B-1 AIRCRAFT
AEF VEHICLE, AIRCRAFT REFUELER R-14
AGA COMMUNICATIONS TERMINAL, SATELLITE AN/GSC-39(V)1
AGN L.P. COMPRESSORS
AHN FIRE PUMPS
AJN STREAM (STD. TENSIONED REPLENISHMENT AT SEA METHOD)
ABK CH 47 (ROTARY WING AIRCRAFT)
TENT 010288392
MAST 008919321
MAST 001514432

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number

Cage

RNCC

RNVC

DAC

RNAAC

Status

MSDS

SADC

Part Number:

4B4276

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MS27183-10

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MS28173-10

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

NAS1070-416L

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

LS1785-416

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

820650G55AE

Cage Code:

58474

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MS27183-10

Cage Code:

96906

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

C4524-380-4

Cage Code:

60532

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

C12-22937

Cage Code:

88907

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

AU02AA171

Cage Code:

10855

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

37766

Cage Code:

96046

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

13207E8525FN4

Cage Code:

97403

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

18L4280-17

Cage Code:

16662

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SK-11001-5

Cage Code:

0EAK3

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

9419274

Cage Code:

24617

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

G9419274

Cage Code:

34623

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

A609014

Cage Code:

53964

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

A22506-4

Cage Code:

89326

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

PL14811020 ITEM 156

Cage Code:

0DHG4

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1018985-001

Cage Code:

0HBH2

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

703HX1

Cage Code:

45152

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

75ELS24

Cage Code:

00736

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

NAS1070-416

Cage Code:

98897

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

88-20564-2

Cage Code:

30554

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

12Z3035-37

Cage Code:

94135

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

WG105347

Cage Code:

3X894

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

8100013

Cage Code:

15434

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

016120076

Cage Code:

5N978

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

5310-000

Cage Code:

61796

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1C6360P14

Cage Code:

07482

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

6640211 FIND 33

Cage Code:

53711

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

81309826

Cage Code:

82796

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

12-Z-22-271

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

120392

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

103339

Cage Code:

D9182

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

0708071

Cage Code:

S3002

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

FR9370D

Cage Code:

F7463

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MS27183-10

Cage Code:

A9271

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

75ELS24

Cage Code:

R1120

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

AU02AA171

Cage Code:

19422

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

108202-15

Cage Code:

21714

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

67872

Cage Code:

58464

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

120392

Cage Code:

11862

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

9419892

Cage Code:

11862

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

70026-10

Cage Code:

95097

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

9419274

Cage Code:

17769

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MS15795-210

Cage Code:

96906

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

PL 14811020 ITEM 156

Cage Code:

95310

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

10082606

Cage Code:

A486G

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

88-20564

Cage Code:

30554

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1018985

Cage Code:

05037

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1018985D001

Cage Code:

05037

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

VS1-4

Cage Code:

05186

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

25-000065-011

Cage Code:

63123

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1018985-001

Cage Code:

05037

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

5310PL0150397

Cage Code:

9009H

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

5310008094058

Cage Code:

SCY13

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

703HX

Cage Code:

SCY13

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

SP25119

Cage Code:

10001

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

L4280-17

Cage Code:

46717

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

LS1091391-10

Cage Code:

01417

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

18L4280-17

Cage Code:

66654

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

703HX1

Cage Code:

75Q65

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

LS1091391

Cage Code:

01417

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC

FIIG

Concept No.

App. Key

Cond. Code

Status

INC:

13393

FIIG:

A022B0

Concept No.:

App. Key:

Cond. Code:

Status:

PERIPHERAL SHAPE STYLE ROUND style nsn 5310-00-809-4058

CROSS-SECTIONAL SHAPE STYLE RECTANGULAR style nsn 5310-00-809-4058

Definition Definition of approved item name (AIN): "WASHER,FLAT"

A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use shim. For items fabricated from ceramic or electrically rated materials by specification or industry standards use insulator (1), washer. Excludes disk, valve, graphite impregnated and lubricated items.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size

Pack Weight

Item Weight

Item Dim.

Pack Size:

Paclk Weight:

0.4000lbs

Item Weight:

Item Dim:

Container

OPI

SPI No.

SPI Rev.

SPC Mkg.

LVL A

LVL B

LVL C

Container:

OPI:

SPI No.:

SPI Rev.:

SPC Mkg:

LVL_A:

LVL_B:

LVL_C:

LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5310-00-809-4058 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC

PMIC

ESD

ENAC

ADPE

CRITL

HMIC:

PMIC:

ESD:

ADPE:

CRITL:

Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

ADPE 0

Represents items with no adp components

Criticality Y

The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restrictions or application.

Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS

SMIC

MMAC

MCC

SOS:

SMS

SOS:

MMAC:

MCC:

SOS:

SMS

SOS:

MMAC:

MCC:

SOS:

SMS

SOS:

MMAC:

MCC:

Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) QS

Aircraft ground servicing equipment

Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
