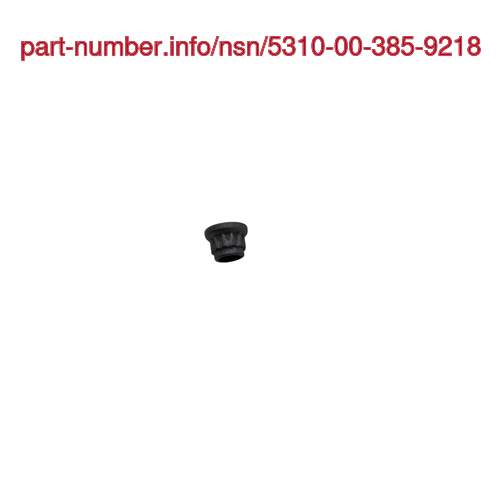

NSN 5310-00-385-9218 NIIN 003859218 — Self-locking Extended Washer Nut

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-00-385-9218
5310003859218
Description:
NUT,SELF-LOCKING,EXTENDED WASHER
NSN Assigned:
25-MAR-74
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy, Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-00-385-9218 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design

Washer Outside Diameter AAVX:

0.311in.

Overall Height ABKW:

0.250in.

Nut Style ACTA:

double hexagon

Washer Thickness ADEM:

0.025in.

Width Across Flats ASDB:

0.243in. and 0.251in. ⁓17/64"

Thread Series BZRR:

unjf

Thread Quantity Per Inch CMLP:

32

Hardness Rating CQFM:

48.0 rockwell c

Nominal Thread Size CQJX:

0.190in. ⁓13/64"

Countersink Angle CRSQ:

90.0 degrees nut

Material MATT:

iron alloy 660

Material Document And Classification MDCL:

ams 5735 assn std single material response or ams 5737 assn std single material response

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
4023115
Cage Code:
77445
RNCC:
1
RNVC:
2
DAC:
5
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
ST2119-09
Cage Code:
77445
RNCC:
5
RNVC:
2
DAC:
2
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
ST2118-09
Cage Code:
77445
RNCC:
3
RNVC:
2
DAC:
A
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
ST2119-09
Cage Code:
15653
RNCC:
5
RNVC:
2
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
ST2113-09
Cage Code:
56878
RNCC:
5
RNVC:
2
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
ST2118-09
Cage Code:
56878
RNCC:
5
RNVC:
2
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
LH11189-3
Cage Code:
72962
RNCC:
5
RNVC:
9
DAC:
A
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
H49513-3
Cage Code:
15653
RNCC:
5
RNVC:
9
DAC:
A
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
LH11189-3
Cage Code:
56878
RNCC:
5
RNVC:
9
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
ST1334-09
Cage Code:
92215
RNCC:
5
RNVC:
9
DAC:
A
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
29729
FIIG:
A021A0
Concept No.:
1
App. Key:
BS
Cond. Code:
1
Status:
A
NUT STYLE DOUBLE HEXAGON style nsn 5310-00-385-9218
NUT STYLE DOUBLE HEXAGON style nsn 5310-00-385-9218

Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,EXTENDED WASHER"

A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5310-00-385-9218 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
CRITL:
F
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Criticality F

The item is an aviation critical safety item/flight safety critical aircraft part (acsi/fscap).

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
NZ
MCC:
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) NZ

F100 pratt & whitney jet engine & components

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 5310-00-385-9218

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE5EC19T0025
End Date:
10/12/2018
Qty:
26846 Ea
AMSC:
B
Buyer Code:
PAA05
PR:
0076443605
SMB:
100%
