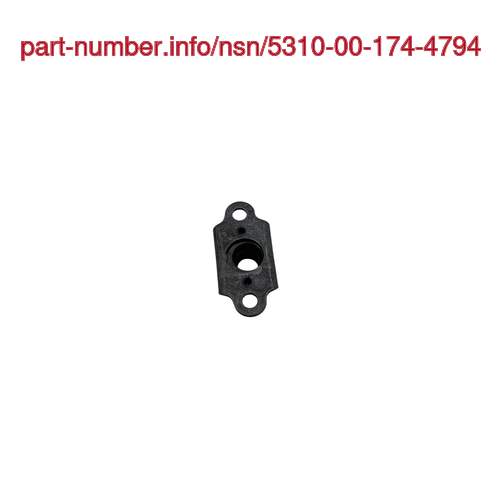

NSN 5310-00-174-4794 NIIN 001744794 — Self-locking Plate Nut

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5310-00-174-4794
5310001744794
Description:
NUT,SELF-LOCKING,PLATE
NSN Assigned:
18-FEB-73
DEMIL:
NO
Shelf Life:
N/A
UOM:
50 EA
Using Services:
Navy, Air Force, Army

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5310-00-174-4794 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3b

Thread Direction AAJF:

RIGHT-Hand

Locking Feature AAUM:

prevailing torque all metal design

Counterbore Diameter AAWY:

0.194in. nut

Lubrication ABAJ:

dry film lubricant

Mounting Hole Diameter ABTB:

0.098in.

Nut Style ACTA:

plate

Nut Length ACVN:

0.948in. ⁓61/64"

Nut Height ADEA:

0.250in. ⁓1/4"

Plate Thickness ADEB:

0.032in.

Plate Width ADEC:

0.416in.

Nut Counterbore Depth ADFK:

0.060in. nut

Nut Mounting Provision ADFP:

straight holes

Mounting Hole Arrangement Style ADFU:

2 holes

Distance From Aperture Center To Mounting Hole Center ADFW:

0.343in. and 0.345in.

Center To Center Distance Between Mounting Holes Along Length ADFY:

0.686in. and 0.690in.

Temp Rating AZKQ:

450.0 deg fahrenheit

Thread Series BZRR:

unjf

Features Provided CBBL:

floating nut

Thread Quantity Per Inch CMLP:

32

Nominal Thread Size CQJX:

0.190in. ⁓13/64"

Material MATT:

steel comp 1030 or steel comp 1033 or steel comp 1035 or steel comp 1536 or steel comp 1037 or steel comp 1038 or steel comp 1039 or steel comp 1040 or steel comp 1541 or steel comp 1042 or steel comp 1043 or steel comp 1045 or steel comp 1046 or steel comp 1548 or steel comp 1049 or steel comp 1050 or steel comp 1552 or steel comp 1055 or steel comp 1060 or steel comp 1064 or steel comp 1065 or steel comp 1070 or steel comp 4130

Material Document And Classification MDCL:

sae assn std all material responses

Surface Treatment SFTT:

cadmium

Surface Treatment Document And Classification STDC:

QQ-P-416, ty 1, cl 3 fed spec single treatment response

Specification/standard Data ZZZK:

81205-BACN10Jr manufacturers standard

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
BACN10JR3F
Cage Code:
81205
RNCC:
3
RNVC:
2
DAC:
1
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
RMF9201-3
Cage Code:
019L2
RNCC:
C
RNVC:
1
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
9F
Part Number:
BRF200A3
Cage Code:
52828
RNCC:
5
RNVC:
2
DAC:
1
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
VN152A1-02
Cage Code:
92215
RNCC:
5
RNVC:
2
DAC:
1
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
F5000-3BAC
Cage Code:
15653
RNCC:
5
RNVC:
2
DAC:
1
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
NS103203-02
Cage Code:
80539
RNCC:
5
RNVC:
2
DAC:
1
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
T8091S1032S
Cage Code:
11815
RNCC:
E
RNVC:
8
DAC:
2
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
T8091S1932S
Cage Code:
71087
RNCC:
E
RNVC:
8
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
RMF9201-3
Cage Code:
72962
RNCC:
5
RNVC:
9
DAC:
1
RNAAC:
SB
Status:
A
MSDS:
SADC:
Part Number:
T8091S1032
Cage Code:
11815
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
871192-00
Cage Code:
32345
RNCC:
5
RNVC:
9
DAC:
9
RNAAC:
XB
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
05280
FIIG:
A021A0
Concept No.:
1
App. Key:
BZ
Cond. Code:
1
Status:
A
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
NUT STYLE PLATE style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794
MOUNTING HOLE ARRANGEMENT STYLE 2 HOLES style nsn 5310-00-174-4794

Definition Definition of approved item name (AIN): "NUT,SELF-LOCKING,PLATE"

A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5310-00-174-4794 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
AW
MCC:
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) AW

Airborne warning and control system (awacs) 411l

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 5310-00-174-4794

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE5E815TF463
End Date:
09/18/2015
Qty:
4742 Ea
AMSC:
B
Buyer Code:
PHPHA
PR:
0060255200
SMB:
100%
