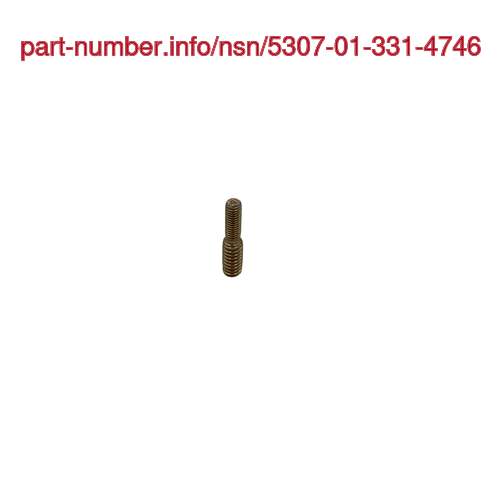

NSN 5307-01-331-4746 NIIN 013314746 — Stepped Stud

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5307-01-331-4746
5307013314746
Description:
STUD,STEPPED
NSN Assigned:
20-DEC-90
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5307-01-331-4746 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3a nut thread

Thread Direction AAJF:

RIGHT-Hand stud thread

Thread Length AASA:

0.438in. nut thread ⁓29/64"

Shank Diameter AAZE:

0.174in.

Overall Length ABHP:

1.062in. ⁓1-1/16"

Thread Quantity Per Inch CMLP:

32 nut thread

Nominal Thread Size CQJX:

0.250in. stud thread ⁓1/4"

Material MATT:

steel

Surface Treatment SFTT:

cadmium

Style Designator STYL:

stepped

Thread Series Designator THSD:

uns stud thread

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
AN154726
Cage Code:
81343
RNCC:
3
RNVC:
2
DAC:
E
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
AN154726
Cage Code:
00198
RNCC:
5
RNVC:
2
DAC:
E
RNAAC:
ZA
Status:
A
MSDS:
SADC:
Part Number:
AN154726
Cage Code:
88044
RNCC:
5
RNVC:
9
DAC:
4
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
15949
FIIG:
A051A0
Concept No.:
App. Key:
C
Cond. Code:
1
Status:
A
STYLE DESIGNATOR STEPPED style nsn 5307-01-331-4746
STYLE DESIGNATOR STEPPED style nsn 5307-01-331-4746

Definition Definition of approved item name (AIN): "STUD,STEPPED"

A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.

5307-01-331-4746 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
