5306009952649

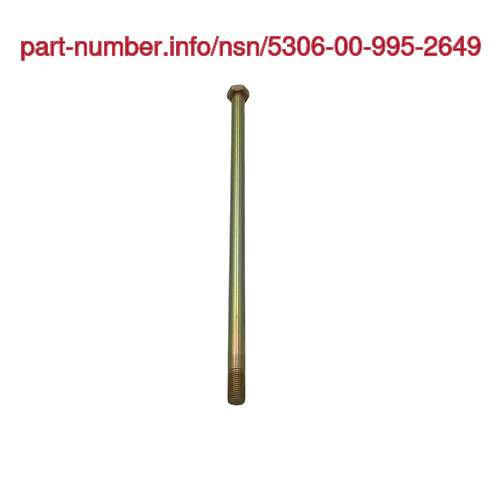

5306-00-995-2649 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5306-00-995-2649 Specification Set by the OEM (see RNCC code 3)
3a
RIGHT-Hand
0.641in. ⁓41/64"
8.703in. ⁓8-45/64"
hexagon
0.203in. and 0.235in. ⁓1/4"
0.553in. and 0.565in.
0.375in. ⁓3/8"
8.062in.
finished head
24
125000 pounds per square inch
26.0 rockwell c and 32.0 rockwell c
steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140
MIL-B-6812 mil spec all material responses
cadmium
QQ-P-416, TY2, CL3 fed spec single treatment response
unf
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "BOLT,MACHINE"
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. the threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. a locking feature may be incorporated in the design of the head or threads. head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. for items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, bolt, shear. See also screw, cap, hexagon head and screw, machine.
5306-00-995-2649 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Precious metal content is unknown
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
