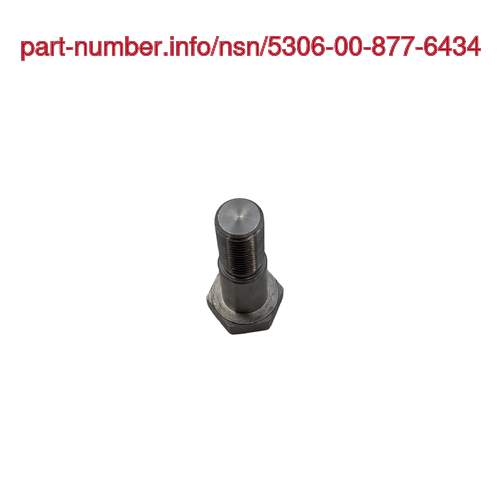

NSN 5306-00-877-6434 NIIN 008776434 — Internally Relieved Body Bolt

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5306-00-877-6434
5306008776434
Description:
BOLT,INTERNALLY RELIEVED BODY
NSN Assigned:
01-JAN-62
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy, Army

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5306-00-877-6434 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3a

Thread Direction AAJF:

RIGHT-Hand

Thread Length AASA:

1.000in. and 1.040in. ⁓1-3/64"

Fastener Length AASB:

1.920in. and 1.940in. ⁓1-61/64"

Head Style AASK:

hexagon

Head Height AASU:

0.330in. and 0.350in. ⁓23/64"

Width Between Flats AATB:

0.938in.

Concentric Hole Depth AAWX:

0.880in.

Concentric Hole Diameter AAXC:

0.327in. and 0.334in.

Nominal Thread Diameter AHYM:

0.562in. ⁓9/16"

Thread Quantity Per Inch CMLP:

18

Material MATT:

steel comp 416

Style Designator STYL:

concentric hole unthreaded

Thread Series Designator THSD:

unf

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
114D3053-1
Cage Code:
77272
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
114D3053-1
Cage Code:
0F3N2
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
114D3053-1
Cage Code:
9N156
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
114D3053-1
Cage Code:
81205
RNCC:
5
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
06676
FIIG:
A003B0
Concept No.:
App. Key:
BN
Cond. Code:
1
Status:
A
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
STYLE DESIGNATOR CONCENTRIC HOLE UNTHREADED style nsn 5306-00-877-6434
HEAD STYLE HEXAGON style nsn 5306-00-877-6434

Definition Definition of approved item name (AIN): "BOLT,INTERNALLY RELIEVED BODY"

An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see bolt, fluid passage.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) O

Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

5306-00-877-6434 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
F
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality F

The item is an aviation critical safety item/flight safety critical aircraft part (acsi/fscap).

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 5306-00-877-6434

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE4A515TDU27
End Date:
09/21/2015
Qty:
1888 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0060300702
SMB:
100%
Solicitation:
SPE4A515TCP92
End Date:
08/28/2015
Qty:
1793 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0059907825
SMB:
100%
Solicitation:
SPE4A515TBY00
End Date:
08/17/2015
Qty:
319 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0059594267
SMB:
100%
Solicitation:
SPE4A515TZ391
End Date:
06/29/2015
Qty:
3291 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0058860157
SMB:
100%
Solicitation:
SPE4A515TT112
End Date:
05/18/2015
Qty:
2792 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0057971107
SMB:
100%
Solicitation:
SPE4A515TR956
End Date:
04/27/2015
Qty:
3063 Ea
AMSC:
Q
Buyer Code:
PARAC
PR:
0057987246
SMB:
100%
