NSN 5305-01-379-0559 NIIN 013790559 — Cap Socket Head Screw

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
5305-01-379-0559
5305013790559
Description:

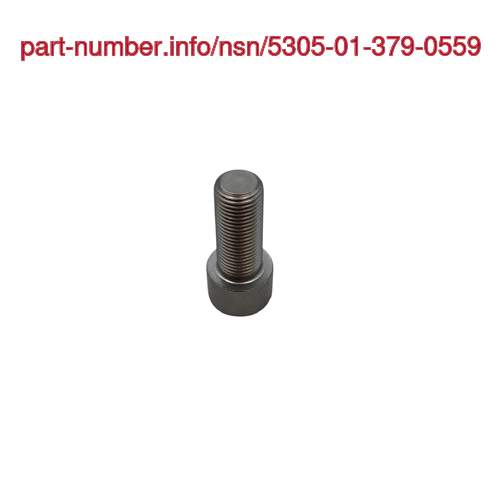

SCREW,CAP,SOCKET HEAD
NSN Assigned:
26-AUG-93
DEMIL:
NO
Shelf Life:
N/A
UOM:
No qup EA
Using Services:
Navy, Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

5305-01-379-0559 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

3a

Thread Direction AAJF:

RIGHT-Hand

Thread Length AASA:

1.250in. ⁓1-1/4"

Fastener Length AASB:

1.190in. and 1.250in. ⁓1-1/4"

Head Style AASK:

flat chamfer

Head Diameter AASL:

0.735in. and 0.750in.

Head Height AASU:

0.492in. and 0.500in. ⁓1/2"

Internal Drive Style ABQZ:

hexagon

Nominal Thread Diameter AHYM:

0.500in. ⁓1/2"

Width Across Flats ASDB:

0.375in. and 0.379in. ⁓25/64"

Thread Quantity Per Inch CMLP:

20

Minimum Tensile Strength CQBC:

160000 pounds per square inch

Hardness Rating CQFM:

33.0 rockwell c and 42.0 rockwell c

Material MATT:

iron alloy 660

Material Document And Classification MDCL:

AMS5731 assn std single material response and AMS5737 assn std single material response

Surface Treatment SFTT:

passivate

Surface Treatment Document And Classification STDC:

QQ-P-35 fed spec single treatment response

Thread Series Designator THSD:

unrf

Specification/standard Data ZZZK:

80205-NAS1531 professional/industrial association standard

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
NAS1351N8-20
Cage Code:
80205
RNCC:
3
RNVC:
2
DAC:
E
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
16282
FIIG:
A003B0
Concept No.:
App. Key:
SC
Cond. Code:
1
Status:
A
HEAD STYLE FLAT CHAMFER style nsn 5305-01-379-0559
INTERNAL DRIVE STYLE HEXAGON style nsn 5305-01-379-0559

Definition Definition of approved item name (AIN): "SCREW,CAP,SOCKET HEAD"

An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See bolt, internal wrenching. Excludes screw, shoulder; and screw, machine.
