5210012047077

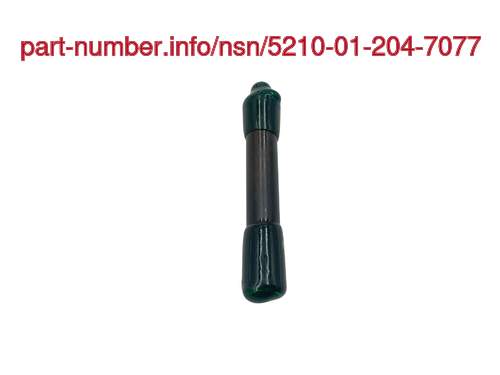

5210-01-204-7077 Images
(for reference only)
Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.
Quality Commitment
Serving our customers with quality and safety first.
- AS9120 Certified
- Audited supply chain
- ITAR Registered
- DDTC Registered
- HAZMAT Certified
- Customer service objectives
- Every product 100% inspected
5210-01-204-7077 Specification Set by the OEM (see RNCC code 3)
rosan no. SR250, SR258, SR250L and SR258L screw thread inserts
used to check swage and depth of insert after swaging
steel alloy; black oxide, MIL-C-13924, cl 1 plus oil per MIL-C-16173, gr 3; o/a lg 2.970-3.030 in; cutaway onboth end 0.750 in. lg; largest od 0.438 in.; first end has single projection 0.0345-0.0380 in. lg, 0.234 in. hg, 0.3090-0.3115 in. dia; second end projection stepped, first step 0.204 in. od, second step 0.2780-0.2805 in. dia, 0.219 in. hg
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
5210-01-204-7077 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Precious metal content is unknown
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
