NSN 4730-01-590-9010 NIIN 015909010 — Tube Elbow

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
4730-01-590-9010
4730015909010
Description:
ELBOW,TUBE
NSN Assigned:
30-DEC-10
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

4730-01-590-9010 Images

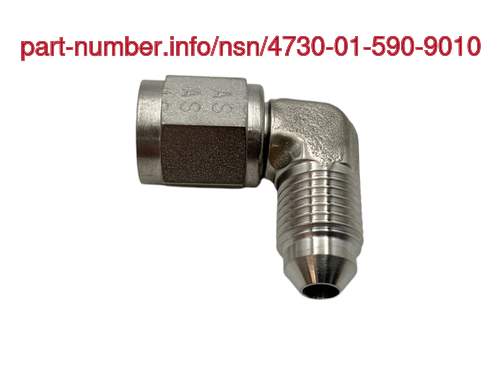

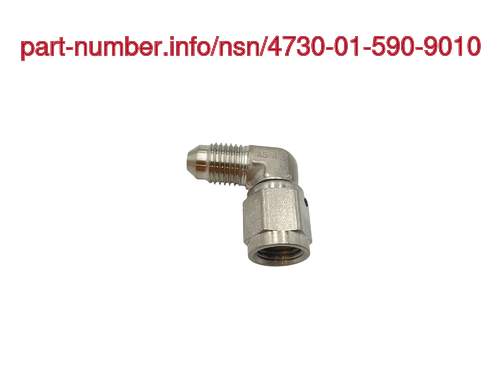

(for reference only) NSN 4730-01-590-9010

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

4730-01-590-9010 Specification Set by the OEM (see RNCC code 3)

Leg Length AHSJ:

0.882in. 2nd end

Connection Type AWLS:

threaded internal tube 1st end

Nominal Thread Size CQJX:

0.437in. 2nd end ⁓2-1/64"

Nominal Outside Diameter Tube Accommodated CWFD:

0.250in. all ends

Material MATT:

steel corrosion resisting body

Surface Treatment SFTT:

passivate body

Thread Series Designator THSD:

unjf all ends

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
AS4407J0404
Cage Code:
81343
RNCC:
3
RNVC:
2
DAC:
E
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
03771
FIIG:
A080B0
Concept No.:
App. Key:
A
Cond. Code:
1
Status:
A

Definition Definition of approved item name (AIN): "ELBOW,TUBE"

A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also elbow, pipe and connector, multiple, fluid pressure line.
