NSN 4730-00-278-6346 NIIN 002786346 — Pipe Magnetic Plug

Home » FSG Index » FSG 47 - And Fittings Hose Tubing Pipe » FSC 4730 - And Railing Fittings Lubrication Tube Pipe Hose » NSN 4730-00-278-6346

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		4730-00-278-6346
4730002786346

Description:

PLUG,PIPE,MAGNETIC

NSN Assigned:

01-JAN-61

DEMIL:

Shelf Life:

N/A

UOM:

Using Services:

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

4730-00-278-6346 Specification Set by the OEM (see RNCC code 3)

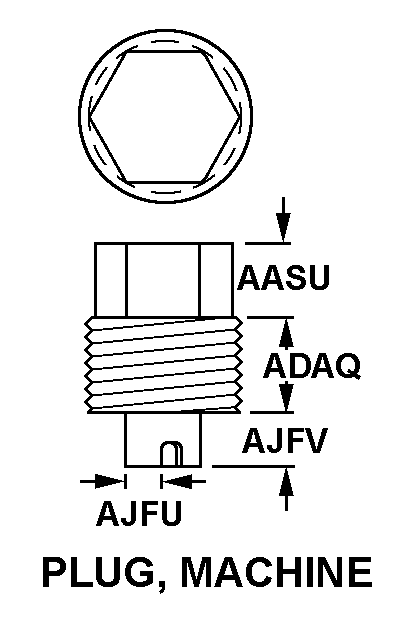

Thread Direction AAJF:

RIGHT-Hand external

Head Height AASU:

0.500in. ⁓1/2"

Body Length ADAQ:

0.750in.

Connection Style AHNC:

plain

Magnet Width AJFU:

0.500in.

Magnet Projection Length AJFV:

0.187in.

Nominal Thread Size CQJX:

1.000in. external ⁓1/64"

Material MATT:

iron

Style Designator STYL:

plug, magnetic

Thread Series Designator THSD:

nptf external

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number

Cage

RNCC

RNVC

DAC

RNAAC

Status

MSDS

SADC

Part Number:

1250M143

Cage Code:

78500

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

BDSKH

SADC:

Part Number:

404PQ

Cage Code:

75624

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

404PQ

Cage Code:

36540

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1250M143

Cage Code:

78500

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

BDSKH

SADC:

Part Number:

404PQ

Cage Code:

36540

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

404PQ

Cage Code:

75624

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

1250M143

Cage Code:

78500

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

BDSKH

SADC:

Part Number:

404PQ

Cage Code:

36540

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

404PQ

Cage Code:

75624

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC

FIIG

Concept No.

App. Key

Cond. Code

Status

INC:

22340

FIIG:

A208A0

Concept No.:

App. Key:

Cond. Code:

Status:

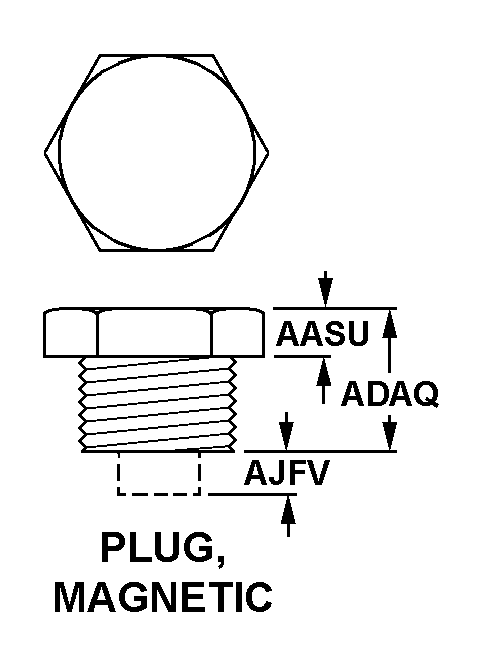

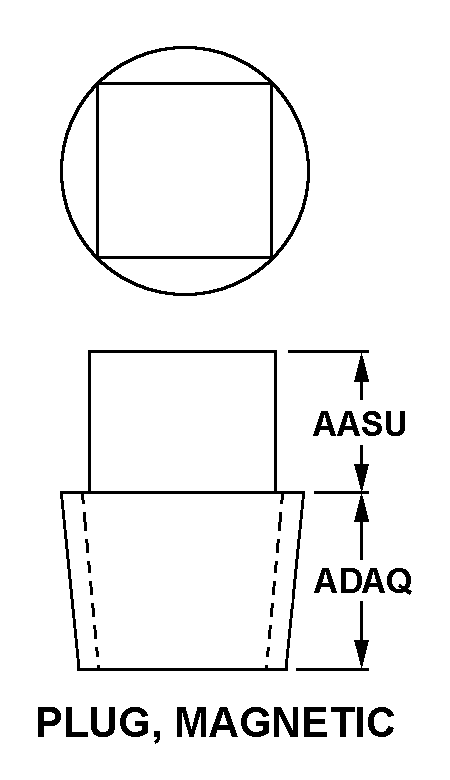

STYLE DESIGNATOR PLUG, MAGNETIC style nsn 4730-00-278-6346
