4210-01-388-9047 Specification Set by the OEM (see RNCC code 3)
1
8
nonsubmersible
diesel engine
pumper and rescue
8V92Ta
detroit diesel
1
not provided
automatic
1
4
not included

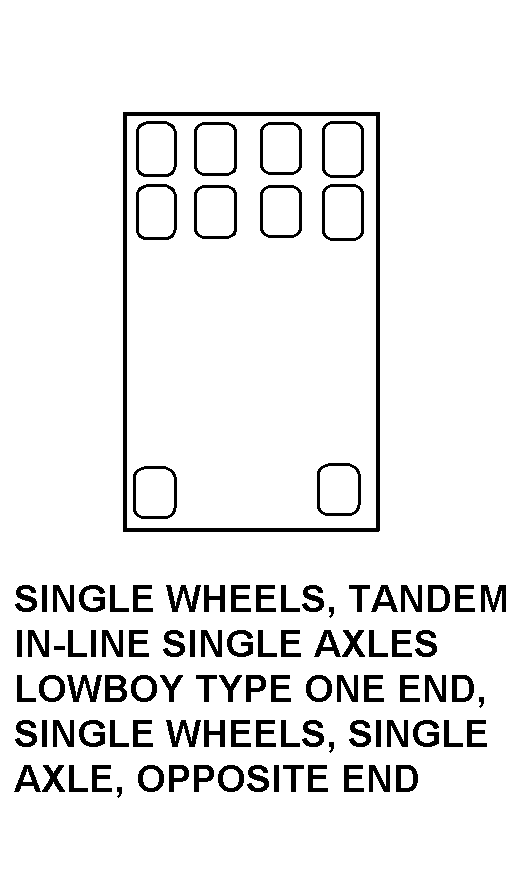

single wheels, tandem IN-Line single axles lowboy type one end, single wheels, single axle, opposite end
water
1
included
not included
248.000in.
not included
450.0000 horsepower
2100
grover air horn code 3-NO3692 V-Con siren; 100 watt siren speaker; WHELEN21" strobe lightbars; hale osmg 1250 single stage pump; hose chute access doors; "a" frame ladder on rear of body; twohannay electric cord reels w/200ft of 12/3 cable, two 500 watt quartz lightsmounted on platform
102 ft aerialcat PLATFORM-Kme lowprofile aerial custom chassis; seating for 6 firefighters; 5 scba seats; air conditioned cab; 21, 480 lb cap front axle, 52, 000 lb cap rear tandem axle; allison HT-740P automatic transmission w/OUT-Put retarder; 100gal fuel tank; haletpm relief valve system; aluminum hose BED-Cap 1000' of 5" hose; 6000 watt t&jdiesel generator; chalmers rubber blockrear suspension; automatic brake slack adjuster; seven place breaker panel
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "TRUCK,FIRE FIGHTING"
Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Related NSNs
Indicates that the item represented by the nsn in the input/output header is the (physical) item of production in an i&s generic relationship. (the generic master nsn appears in the segment h.) must be used in combination with phrase code s.
Relationship Codes
OOU: Order of Use. Three position alpha code denoting the interchangeability and substitutability (I&S) relationship of a national stock number within a service/agency I&S family.
JTC: Jump to Code. Three position alpha code that denotes an exception to the normal sequence to be followed in the attrition of items within an interchangeability and substitutability (I&S) family.
Phrase Code: A one position code assigned to a phrase used in the management data list to denote changes and/or relationships between national stock numbers and reference data.
4210-01-388-9047 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
Item does not contain precious metal.
Represents items with no adp components
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
Material Management Material categorization and source of supply
Warner-robins air logistics center 455 byron st robins afb, ga 31098-1860
Material Codes
SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.
SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.
MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.
MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category
IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
