NSN 3120-01-503-5926 NIIN 015035926 — Plain Self-aligning Bearing

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
3120-01-503-5926
3120015035926
Description:
BEARING,PLAIN,SELF-ALIGNING
NSN Assigned:
26-DEC-02
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

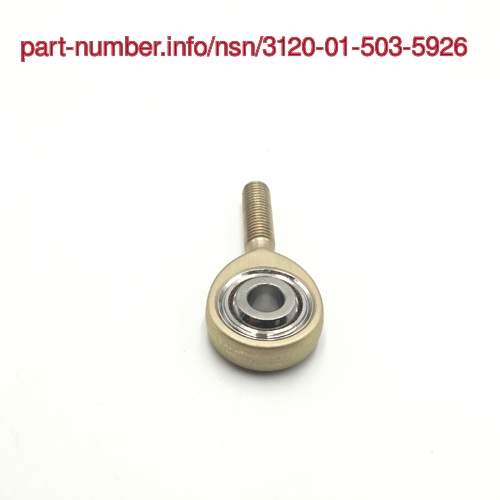

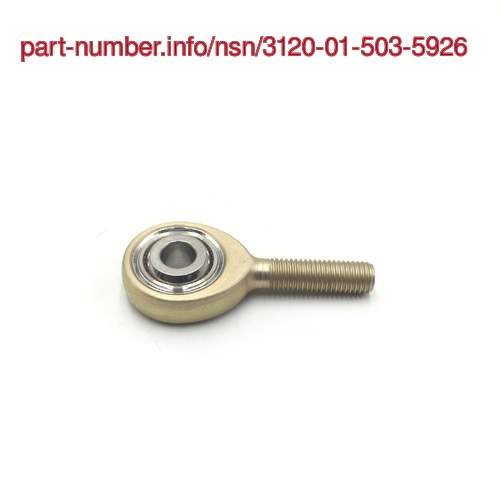

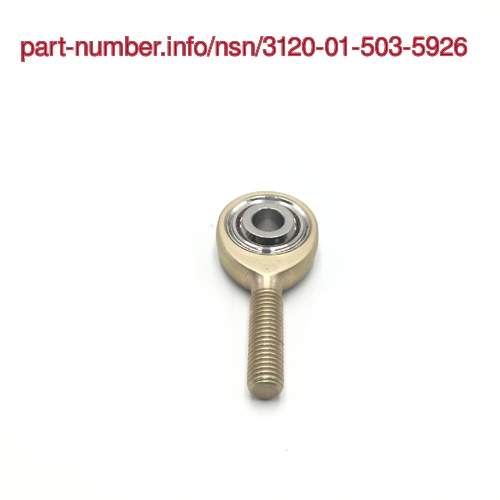

3120-01-503-5926 Images

(for reference only) NSN 3120-01-503-5926 NSN 3120-01-503-5926 NSN 3120-01-503-5926

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

3120-01-503-5926 Specification Set by the OEM (see RNCC code 3)

Bore Diameter ABXV:

0.2495in. and 0.2500in.

Outer Member Outside Diameter AGGF:

0.8170in. and 0.8370in.

Outer Member Width AGGH:

0.2550in. and 0.2650in.

Inner Member Width AGGJ:

0.3410in. and 0.3430in.

Hardness Rating CQFM:

55.0 rockwell c inner member and 62.0 rockwell c inner member

Special Features FEAT:

right hand thread direction; static load 5, 300 lbs; fatigue load 1, 500 lbs; axial proof load 430 lbs; 28 THREADS-Unjf

Material MATT:

steel comp E4340 rod end body

Material Document And Classification MDCL:

ams 5630 assn std single material response inner member

Surface Treatment SFTT:

cadmium rod end body and chromate rod end body

Style Designator STYL:

with insert and/or liner

Specification/standard Data ZZZK:

81343-AS81935/4 professional/industrial association standard

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
M81935/4-04
Cage Code:
81349
RNCC:
2
RNVC:
2
DAC:
E
RNAAC:
9Z
Status:
A
MSDS:
SADC:
Part Number:
AS81935/4
Cage Code:
81343
RNCC:
5
RNVC:
1
DAC:
E
RNAAC:
9Z
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
13208
FIIG:
A045A0
Concept No.:
App. Key:
B
Cond. Code:
1
Status:
A
STYLE DESIGNATOR WITH INSERT AND/OR LINER style nsn 3120-01-503-5926
STYLE DESIGNATOR WITH INSERT AND/OR LINER style nsn 3120-01-503-5926

Definition Definition of approved item name (AIN): "BEARING,PLAIN,SELF-ALIGNING"

A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes bearing, plain, rod end and bearing, plain, spherical.

3120-01-503-5926 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
A
ESD:
A
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Electrostatic Discharge (ESD) A

No known electrostatic discharge (esd) or electromagnetic interference (emi) sensitivity.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Solicitation History DLA solicitations for NSN 3120-01-503-5926

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE4A419T5970
End Date:
04/19/2019
Qty:
32 Ea
AMSC:
T
Buyer Code:
GPD58
PR:
0079284221
SMB:
0%
Solicitation:
SPE4A419T5445
End Date:
04/01/2019
Qty:
36 Ea
AMSC:
T
Buyer Code:
GPD58
PR:
0078972817
SMB:
0%
Solicitation:
SPE4A419T1551
End Date:
11/23/2018
Qty:
30 Ea
AMSC:
T
Buyer Code:
GPD58
PR:
0077190369
SMB:
0%
Solicitation:
SPE4A517TQ378
End Date:
03/23/2017
Qty:
25 Ea
AMSC:
T
Buyer Code:
GPA39
PR:
0067950789
SMB:
0%
Solicitation:
SPE4A617Q1234
End Date:
03/07/2017
Qty:
2 Ea
AMSC:
T
Buyer Code:
PARAV
PR:
0067749095
SMB:
0%
