3120-01-470-8316 Specification Set by the OEM (see RNCC code 3)
RIGHT-Hand
externally threaded
1.0390in. ⁓1-3/64"
0.9554in. and 0.9567in.
0.3540in.
0.6772in. and 0.6850in.
0.2947in. and 0.2953in.
radial ultimate load: 2320 lbs; max opertaing load: 1624 lbs; max operating temperature: 626 deg f
nickel alloy
AMS5663 national spec all material responses
chromium rod end body
QQ-C-320, TY-Ii, CL-2 fed spec 1st treatment response rod end body

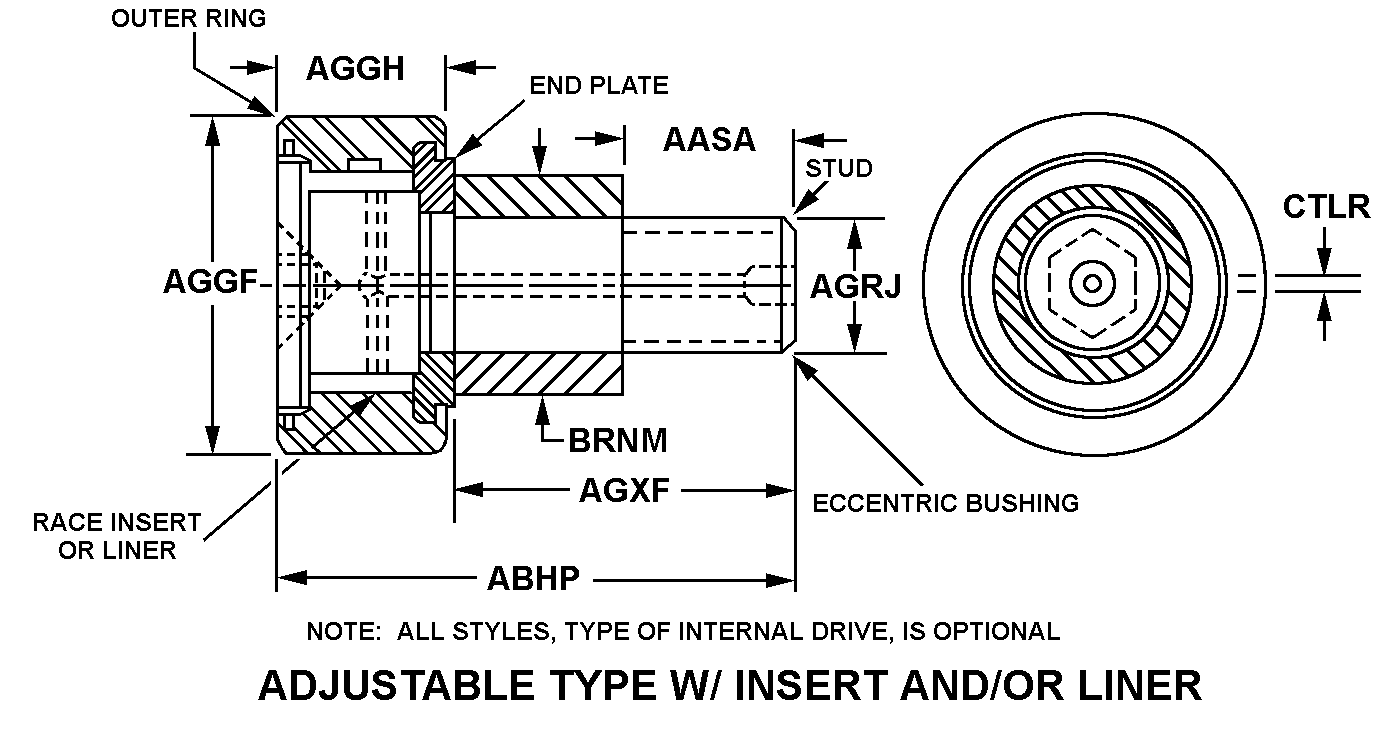

adjustable type w/insert and/or liner
mj
Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM
Identification Item Identification Guide (IIG) and Item Name Code (INC)
Definition Definition of approved item name (AIN): "BEARING,PLAIN,CAM FOLLOWER"
A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also cam follower, needle bearing.
3120-01-470-8316 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Item does not contain precious metal.
No known electrostatic discharge (esd) or electromagnetic interference (emi) sensitivity.
Represents items with no adp components
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Identification Codes
HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.
PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.
ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.
ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.
CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
