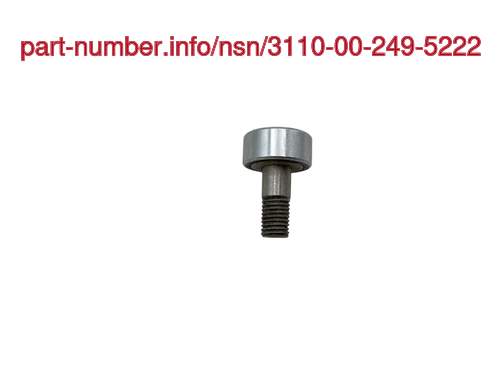

NSN 3110-00-249-5222 NIIN 002495222 — Needle Bearing Cam Follower

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
3110-00-249-5222
3110002495222
Description:
CAM FOLLOWER,NEEDLE BEARING
NSN Assigned:
10-NOV-69
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

3110-00-249-5222 Specification Set by the OEM (see RNCC code 3)

Thread Class AAJD:

2a

Thread Direction AAJF:

RIGHT-Hand

Thread Length AASA:

0.0460in. and 0.4680in. ⁓15/32"

Overall Length ABHP:

1.1093in. ⁓1-1/8"

Overall Outside Diameter ADGA:

0.7490in. and 0.7510in.

Lubrication Material ADZG:

grease

Stud Diameter AGRJ:

0.3110in. and 0.3120in.

Outer Ring Width AGVT:

0.3390in. and 0.3440in.

Stud Length AGXF:

0.7190in. and 0.7810in.

Thread Quantity Per Inch CMLP:

24

Nominal Thread Size CQJX:

0.312in. ⁓5/16"

Special Features FEAT:

extended portion of stud heat treated rc 36-4, 0.076 dia hole in thd end located 0.109 in. from end, magnectic particle insp, internal diametral looseness 0.003 to 0.0013 in. ma, NAS-516-1 alemite fitting in flange end of stud

Lubrication Material Document And Classification LMDC:

MIL-G-23827 mil spec single material response

Material MATT:

steel end plate

Surface Treatment SFTT:

cadmium all external/exposed metal surfaces

Surface Treatment Document And Classification STDC:

QQ-P-416 type 1 class 2 fed spec 2nd treatment response all external/exposed metal surfaces

Style Designator STYL:

cam follower

Thread Series Designator THSD:

unf

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
BACB10FK5F6HS
Cage Code:
81205
RNCC:
1
RNVC:
2
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
HRT3CF6
Cage Code:
92563
RNCC:
5
RNVC:
1
DAC:
5
RNAAC:
TG
Status:
A
MSDS:
SADC:
Part Number:
BACB10FK5F6HS
Cage Code:
07484
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
BACB10FK5F6HS
Cage Code:
3NPS1
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
BACB10FK5F6HS
Cage Code:
92563
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
BAC10FK5F6HS
Cage Code:
81205
RNCC:
5
RNVC:
9
DAC:
1
RNAAC:
KZ
Status:
A
MSDS:
SADC:
Part Number:
HRT3CF6
Cage Code:
39317
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
TG
Status:
A
MSDS:
SADC:
Part Number:
BACB10FK5F6HS
Cage Code:
39317
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
BACB10BH59F6
Cage Code:
81205
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
KZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
00040
FIIG:
A044A0
Concept No.:
App. Key:
A
Cond. Code:
1
Status:
A
STYLE DESIGNATOR CAM FOLLOWER style nsn 3110-00-249-5222
STYLE DESIGNATOR CAM FOLLOWER style nsn 3110-00-249-5222
STYLE DESIGNATOR CAM FOLLOWER style nsn 3110-00-249-5222

Definition Definition of approved item name (AIN): "CAM FOLLOWER,NEEDLE BEARING"

An assembly consisting of a roller and stud used to effect a rolling contact with a cam, and convert the reciprocating or oscillating motion to linear motion.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.1000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
M
SPI No.:
SPI Rev.:
SPC Mkg:
51
LVL_A:
E
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) M

All packaging data is mandatory for compliance and no substitutions are permitted. fast packs should be included in this category.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

3110-00-249-5222 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 3110-00-249-5222

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE4A619Q1206
End Date:
05/02/2019
Qty:
5885 Ea
AMSC:
B
Buyer Code:
DRH00
PR:
0079153801
SMB:
100%
Solicitation:
SPE4A518T5807
End Date:
11/15/2017
Qty:
549 Ea
AMSC:
B
Buyer Code:
GPA39
PR:
0071619374
SMB:
100%
Solicitation:
SPE4A517TG517
End Date:
02/07/2017
Qty:
1025 Ea
AMSC:
B
Buyer Code:
GPP24
PR:
0067289633
SMB:
100%
Solicitation:
SPE4A615TJX96
End Date:
09/11/2015
Qty:
2018 Ea
AMSC:
B
Buyer Code:
PARAV
PR:
0060162471
SMB:
100%
Solicitation:
SPE4A615TFS33
End Date:
07/30/2015
Qty:
987 Ea
AMSC:
B
Buyer Code:
PARAV
PR:
0059358696
SMB:
100%
