NSN 2945-00-091-4931 NIIN 000914931 — Fluid Filter Cover

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
2945-00-091-4931
2945000914931
Description:
COVER,FLUID FILTER
NSN Assigned:
01-JAN-63
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Navy, Air Force

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

2945-00-091-4931 Specification Set by the OEM (see RNCC code 3)

Hole Diameter AAUB:

0.279in. and 0.286in. ⁓19/64"

Bolt Circle Diameter ABKG:

3.250in.

Peripheral Shape Style ABMW:

circular w/raised ears

Attachment Method ABSX:

bolted

Body Radius ADNX:

1.750in.

Inverted Radius ADPF:

0.250in.

Ear Radius ADPG:

0.300in.

Ear Quantity ADPH:

6

Bolt Circle Hole Quantity ADPM:

6

Mounting Opening Shape Style ADQK:

unthreaded hole

Mounting Hole Type And Quantity CDXK:

6 plain

Fluid Filter Element Retainer CDXL:

not included

Material MATL:

aluminum alloy

Material MATT:

aluminum alloy

Fsc Application Data ZZZV:

filter, fluid, pressure, aircraft engine

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
02S692-100
Cage Code:
00736
RNCC:
3
RNVC:
2
DAC:
2
RNAAC:
MB
Status:
A
MSDS:
SADC:
Part Number:
02S692-100
Cage Code:
61392
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
02S692-100
Cage Code:
8X938
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
22569
FIIG:
T384-D
Concept No.:
1
App. Key:
DA
Cond. Code:
2
Status:
A

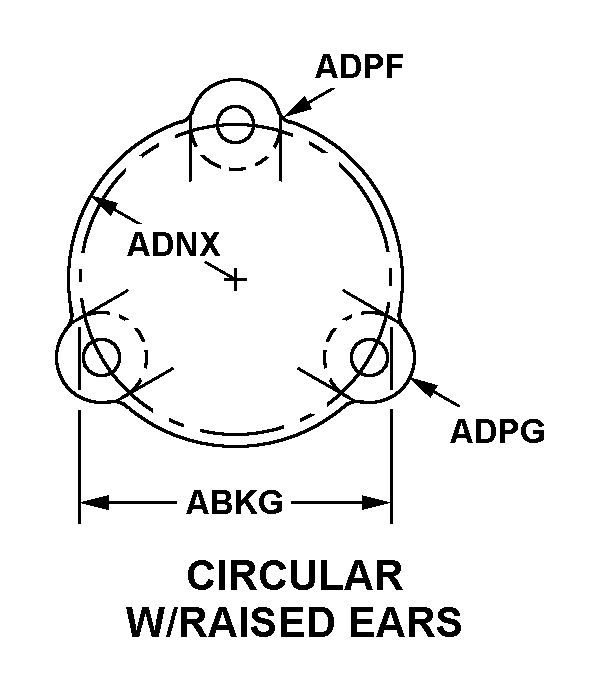

PERIPHERAL SHAPE STYLE CIRCULAR W/RAISED EARS style nsn 2945-00-091-4931

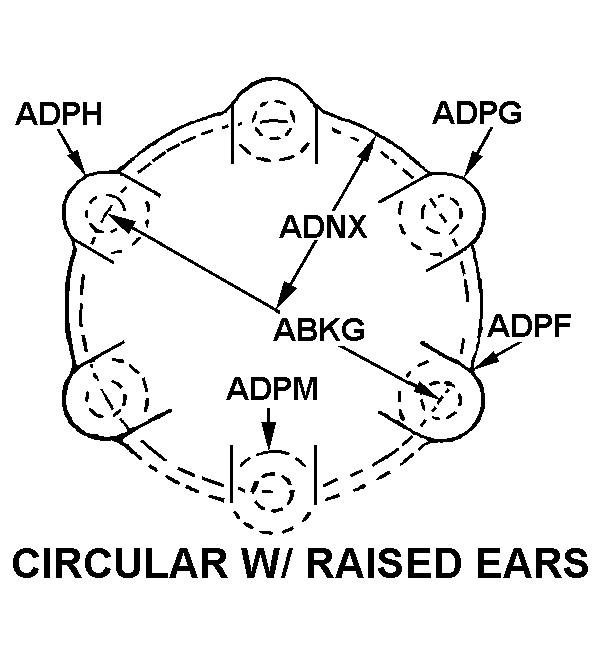

PERIPHERAL SHAPE STYLE CIRCULAR W/RAISED EARS style nsn 2945-00-091-4931
MOUNTING OPENING SHAPE STYLE UNTHREADED HOLE style nsn 2945-00-091-4931

Definition Definition of approved item name (AIN): "COVER,FLUID FILTER"

A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the filter body, fluid by means of clamps or bolts. For items with inlet and/or outlet connections, see head, fluid filter.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size
Pack Weight
Item Weight
Item Dim.
Pack Size:
--
Paclk Weight:
0.3000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
SPC Mkg.
LVL A
LVL B
LVL C
Container:
--
OPI:
M
SPI No.:
SPI Rev.:
SPC Mkg:
00
LVL_A:
E
LVL_B:
Q
LVL_C:
LVL A Code (LVL_A) E

Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.

LVL B Code (LVL_B) Q

Packing shall be accomplished in accordance with table c.ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.

Procedure Indicator Code (OPI) M

All packaging data is mandatory for compliance and no substitutions are permitted. fast packs should be included in this category.

Special Markings Code (SPC_MKG) 00

No special marking.

  Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

2945-00-091-4931 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS
SMIC
MMAC
MCC
SOS:
SMS
SOS:
MMAC:
OJ
MCC:
SOS:
SMS
SOS:
MMAC:
MCC:
Source of Supply (SOS) SMS

Defense logistics agency, enterprise business systems

Material Management (MMAC) OJ

Allison jet engine & components

  Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.

Solicitation History DLA solicitations for NSN 2945-00-091-4931

Solicitation
Ends
Qty
AMSC
Buyer
PR
SMB
Solicitation:
SPE4A718T654Q
End Date:
08/24/2018
Qty:
36 Ea
AMSC:
C
Buyer Code:
GPD45
PR:
0075803846
SMB:
0%
Solicitation:
SPE4A718T3157
End Date:
11/15/2017
Qty:
32 Ea
AMSC:
C
Buyer Code:
GPP83
PR:
0071611515
SMB:
0%
Solicitation:
SPE4A717TN146
End Date:
08/16/2017
Qty:
37 Ea
AMSC:
C
Buyer Code:
GPP83
PR:
0070224064
SMB:
0%
Solicitation:
SPE4A517T5564
End Date:
11/21/2016
Qty:
50 Ea
AMSC:
C
Buyer Code:
GPP79
PR:
0066320680
SMB:
100%
Solicitation:
SPE4A516TY914
End Date:
05/05/2016
Qty:
73 Ea
AMSC:
C
Buyer Code:
GPP79
PR:
0063139548
SMB:
100%
