NSN 2920-00-255-4951 NIIN 002554951 — Engine Generator Regulator

Home » FSG Index » FSG 29 - Engine Accessories » FSC 2920 - Nonaircraft Engine Electrical System Components » NSN 2920-00-255-4951
NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
2920-00-255-4951
2920002554951
Description:
REGULATOR,ENGINE GENERATOR
NSN Assigned:
01-JAN-63
DEMIL:
NO
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

2920-00-255-4951 Specification Set by the OEM (see RNCC code 3)

Terminal Quantity AARA:

3

Terminal Type AARB:

screw

Mounting Style ADER:

two open slots on a radius

Shock Mount AGBC:

not provided

Radio Interference Shielding ALBH:

not provided

Output Voltage Rating In Volts ANPP:

6.4 and 8.3

System Voltage Rating ANYC:

6.0

System Ground Polarity ANYD:

negative or positive

Voltage Regulator Unit Type ANYE:

wire wound coil step type

Voltage Regulator Unit Quantity ANYH:

1

Current Regulator Unit Type ANYJ:

wire wound coil integral w/voltage regulator unit

Circuit Control Device Type ANYR:

cutout relay

Cut-in Voltage Rating ANYS:

6.0 and 7.1

Reverse Current Overload Circuit Breaker ANZB:

not included

Field Relay Unit ANZC:

not included

Terminal Encasement ANZE:

not encased

Open Slot Width APAS:

0.219in.

Mounting Facility Radius APBC:

2.219in.

Err Default APBE:

err default

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
38600D
Cage Code:
92679
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
AX
Status:
A
MSDS:
SADC:
Part Number:
5839
Cage Code:
16764
RNCC:
3
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
5839
Cage Code:
24617
RNCC:
5
RNVC:
9
DAC:
3
RNAAC:
AX
Status:
A
MSDS:
SADC:
Part Number:
5839
Cage Code:
1LW55
RNCC:
5
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
Part Number:
9B9230
Cage Code:
11083
RNCC:
5
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
38600D
Cage Code:
31007
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
AX
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
17169
FIIG:
A18400
Concept No.:
1
App. Key:
A
Cond. Code:
2
Status:
A

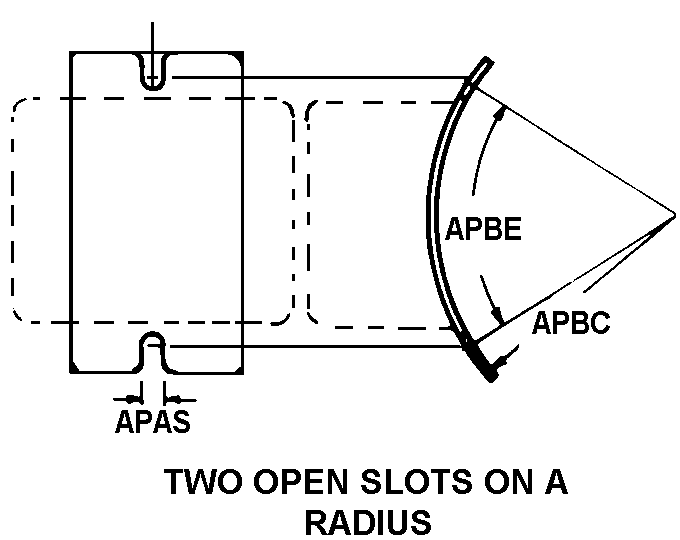

MOUNTING STYLE TWO OPEN SLOTS ON A RADIUS style nsn 2920-00-255-4951

Definition Definition of approved item name (AIN): "REGULATOR,ENGINE GENERATOR"

A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also regulator, current and regulator, voltage.

2920-00-255-4951 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
U
ESD:
ESD:
ADPE:
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
