NSN 2520-00-457-6660 NIIN 004576660 — Dust Propeller Shaft Cap

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
2520-00-457-6660
2520004576660
Description:
CAP,DUST,PROPELLER SHAFT
NSN Assigned:
01-JAN-63
DEMIL:
NO
Shelf Life:
N/A
UOM:
1 EA
Using Services:
Marines, Navy, Army, Air Force

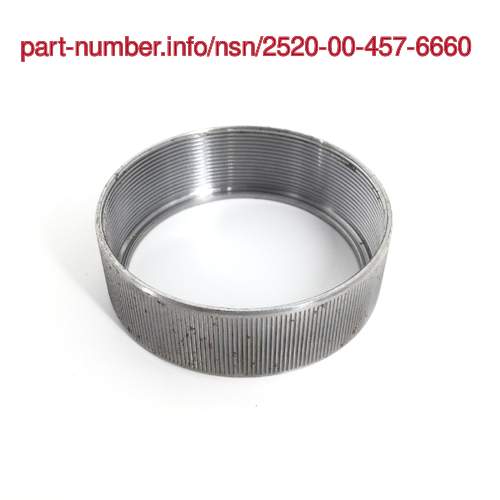

2520-00-457-6660 Images

(for reference only) NSN 2520-00-457-6660

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

2520-00-457-6660 Specification Set by the OEM (see RNCC code 3)

Inside Diameter AARX:

2.212in. and 2.217in.

Thread Length AASA:

0.437in. and 0.562in. ⁓9/16"

Outside Diameter ABKV:

3.688in.

Overall Width ABMK:

0.740in. and 0.760in.

Thread Size ABUJ:

2-1/4-24

Plain Hole Diameter ADCQ:

2.015in. and 2.025in.

End Item Identification AGAV:

2320-01-047-8755

Special Features FEAT:

drive shaft, vehicular; gripping surface CONDITION-Knurled; matl thk 0.060/0.065 in.; screw thd series DESIGNATOR-Ns

Material MATT:

steel

Style Designator STYL:

screw on

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
295035
Cage Code:
7X677
RNCC:
C
RNVC:
1
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
9X
Part Number:
5158841
Cage Code:
7X677
RNCC:
C
RNVC:
1
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:
9X
Part Number:
7349695
Cage Code:
19207
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
7375261
Cage Code:
19207
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
295035
Cage Code:
24617
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
8020F
Cage Code:
45152
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
4-14-19
Cage Code:
72447
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
4-4-19
Cage Code:
72447
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
5158841
Cage Code:
72582
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
9A7916
Cage Code:
95201
RNCC:
3
RNVC:
2
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
313095
Cage Code:
H0001
RNCC:
5
RNVC:
2
DAC:
6
RNAAC:
ZN
Status:
A
MSDS:
SADC:
Part Number:
4-14-19
Cage Code:
19107
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
139244
Cage Code:
08683
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
V906X
Cage Code:
65282
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
295035
Cage Code:
23862
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
AZ
Status:
A
MSDS:
SADC:
Part Number:
5158841
Cage Code:
24617
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
3UB0218
Cage Code:
62265
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
9ABS17
Cage Code:
76040
RNCC:
5
RNVC:
9
DAC:
X
RNAAC:
XX
Status:
A
MSDS:
SADC:
Part Number:
7039C
Cage Code:
56442
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
AX
Status:
A
MSDS:
SADC:
Part Number:
822P2
Cage Code:
56442
RNCC:
5
RNVC:
9
DAC:
5
RNAAC:
AX
Status:
A
MSDS:
SADC:
Part Number:
8020F
Cage Code:
75Q65
RNCC:
3
RNVC:
2
DAC:
5
RNAAC:
ZZ
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
10960
FIIG:
A524J0
Concept No.:
1
App. Key:
Cond. Code:
1
Status:
A
STYLE DESIGNATOR SCREW ON style nsn 2520-00-457-6660

Definition Definition of approved item name (AIN): "CAP,DUST,PROPELLER SHAFT"

A cap designed to exclude dirt from shaft spline, and retain lubricant.
